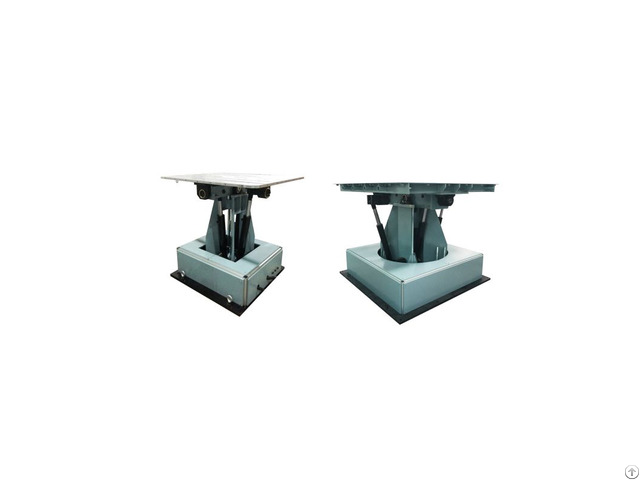

Tilting And Swing Test System - China

This system is mainly used to simulate the tilting and swing tests of all kinds of mechanical, electrical, and electronic products on the ships, seaplanes, marching artillery or other devices, to determine the ability of the product subjected to the tilt and swing in the specified severity and the structural integrity.

The tilting test is mainly applied to the products that must keep working normally or reliably in despite that the ships tilt in a large angle due to damage, handling, unbalanced loading and unloading, wind or other reasons, and equipment such as a marching artillery tilt in a large angle due to running in uneven terrain, and the products whose working performance is obviously influenced by tilting environment.

The swing test is mainly applied to the products that must keep working normally or reliably in despite that the ships swing for a long time due to external forces as wind or waves, and equipment such as a marching artillery swing for a long time due to running in uneven terrain, and the products whose working performance is obviously influenced by swing environment.

Functions and features:

1 - Windows-based stable computer automatic control system: fully automatic remote control interface, the operator only needs to input simple values, it can accurately complete the tilting and swing test;

2 - The operation interface is mainly based on the data curve real-time display window, and displays the test parameters, system status, test progress and others at the same time;

3 - Be able to achieve the sinusoidal signal, self closed loop regulation, and all kinds of function control and alarm prompts functions;

4 - Be able to realize the rolling, pitching, yawing and tilting test functions on the same table;

5 - Be able to achieve remote control; Model: KCT60-100;

Max.

load (kg): 100kg;

Height of specimen COG: 500~1000 mm (customized according to product);

Yawing angular displacement: ±10°;

Rolling angular displacement: ±45°;

Pitching angular displacement: ±30°;

Rolling tilting angular displacement: ±45°;

Pitching tilting angular displacement: ±30°;

Table size (mm): 800*800;

Company Contact:

• Posted By: Hyde Science and Technology Limited

• Phone: +86-29-89182431

• Address: Road Tangyan, Xi'an , Shaanxi , China

• Email:

• Website: http://www.globalhaide.com/

• Business Description: Hyde Science and Technology Limited, established in 2010,is engaged in studying and developing the climate testing techniques, manufacturing environmental testing equipment, researching and developing management software.
