Tmv5 Tmv6 Touch Screen Electronic Torque Tester - China

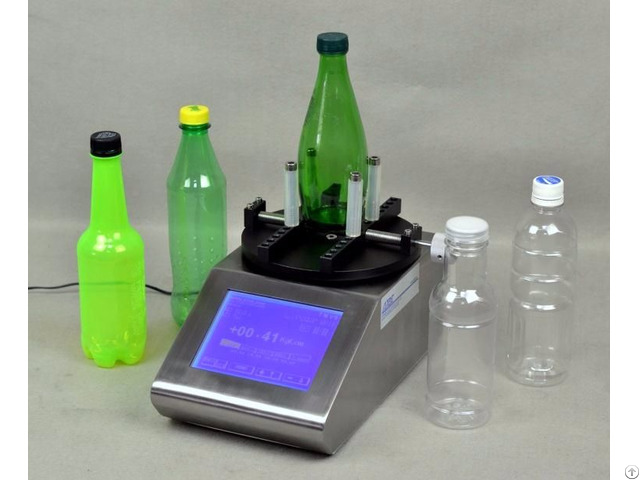

TMV5 - Touch Screen Electronic Torque Tester

Our torque tester are designed with a special mechanical system for measuring torque which cancels most non-coaxial and top load influences on the measurement.

These features cancel most operator induced influences on the measurement for maximum repeatability.



Technical specifications:

• Touch screen display

• Measures opening and closing directions

• 0.080 to 4.000 Kgf.

cm in high accuracy mode

• Measuring range: 00.00 to 99.00 Kgf.

cm

• 3 measuring modes (mean, peak, peak+infos)

• Units: Kgf.

cm / Inch.

lbs / daN.

cm / N.

m / N.

cm

• Accuracy:  0.5 % of full scale

• 100 product memory with 4 limits each

• 4 thresholds by product (V Low, Low, High, v High)

• 20 operators memory

• Setting of files by administrator code

• Store and transfer up to 999 measurements

• Message + bar graph of torque value

• Dynamic display: statistics, hour, date

• Display: product name, operator, batch N°, line N°

• 1 RS232 output for software & 1 printer output

• Language: French / Italian / Spanish / English

• Delivered with COFRAC calibration certificate

• 110 / 230 V - 50/60 Hz

Mechanical specifications:

• Stainless steel frame

• Choice of measuring table: Agro / Cosmetic

• Optional battery

• Dimensions: 30x18x20 cm

• Weight: 7 kg
