Traction And Compression Tester - China

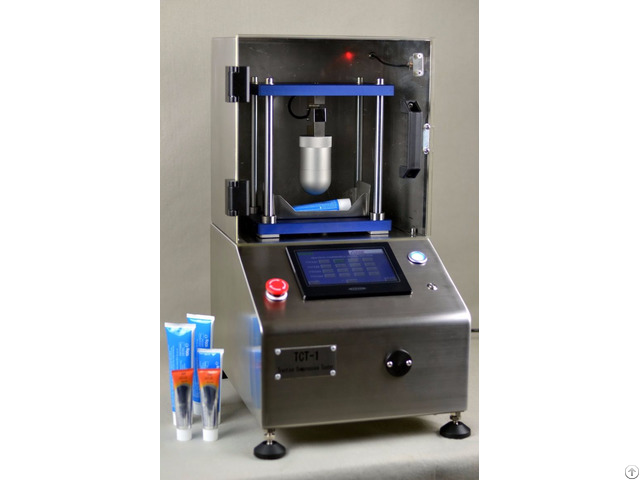

TCT-1 Traction and Compression Tester

The TCT-1 measure the resistance to tear or top load force (traction or compression) for all kind of packaging.

Sample installed on the support and the force is raised in tear or top load direction gradually.

The distance between the gauge and the support plate and column can be adjusted on request.

The sample will be compressed or tore until the maximum force or respecting the settings.

The value is read on the touch screen and a report is printed (3 levels: break / leak or valid or defect).

The touch screen is user friendly.



Characteristic:

• Perfectly parallel plates

• Automatic record of the force

• PLC integrated and touch screen display

• User defined test cycle (up to 4 steps of force and holding time) satisfies different test request

• Memory of 30 products, 10 operators, batch number, sample number ( all by password )

• Easy installation of samples.

• Displays all the information during cycle: time, setting, operator, product, batch NO., Sample NO., value

• Reviews the real-time testing curve

• 3 printing reports are possible : Valid / defect / break

• RS232 outputs

• Stainless steel design ensures the durability of tester

• Overload protected

• Safety design

Technical specifications:

• Dimensions: depends on needs

• Measuring range: depends on needs

• Resolution: 1N

• Power: 110/240 V, AC 50-60 Hz

• Weight: 50 kg
