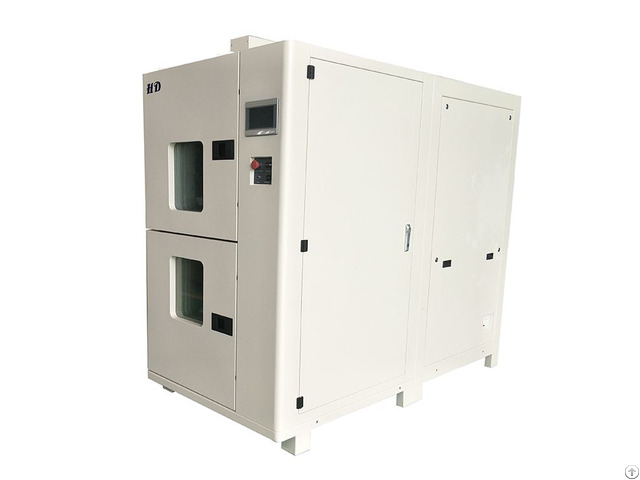

Two Areas Thermal Shock Testing Chamber - China
price: 25000.00 Dollar US$
This chamber is designed to test samples for thermal impact of high and low temperatures by sharply dropping, in order to detect not only defects, but also to determine the operational durability and reliability of samples.
Basket quickly moves from the cold to the hot zone and back, from one zone to another, is no more than 10 seconds.
Model: HD-CTS2-02J;
Basket volume: 120 L;
Basket dimensions (D*W*H): 500*600*400 mm;
External dimensions (D*W*H): 2750*1200*2000 mm(approximately); High temperature area:
Temperature exposure range: +60.
+200℃;
Preheating temperature upper limit: 200℃;
Heating time: R.T.+200℃: 40min (approximately); Low temperature area:
Temperature exposure range: 0-75℃;
Precooling temperature lower limit: -75℃;
Cooling time: R.
T-70℃: 60min (approximately); Basket:
Temperature range: -65.
+150℃;
Temperature fluctuation: ≤1℃
Temperature deviation: ≤±2℃; Conversion time: ≤10 seconds;
Temperature recovery time: ≤5 min.
; Refrigeration mode: Mechanical compression, two-stage refrigeration;
Cooling mode: Water cooling;
Compressor: Imported compressor;
Temperature sensor: Pt100;
Controller: Programmable logic controller, touch screen;
Power supply: AC380V 50Hz, Three-phase four-wire + earth wire;
Company Contact:
- Posted By: Hyde Science and Technology Limited
- Phone: +86-29-89182431
- Address: Road Tangyan, Xi'an , Shaanxi , China
- Email:
- Website: http://www.globalhaide.com/
Published date: April 26, 2021
- Business Description: Hyde Science and Technology Limited, established in 2010,is engaged in studying and developing the climate testing techniques, manufacturing environmental testing equipment, researching and developing management software.
