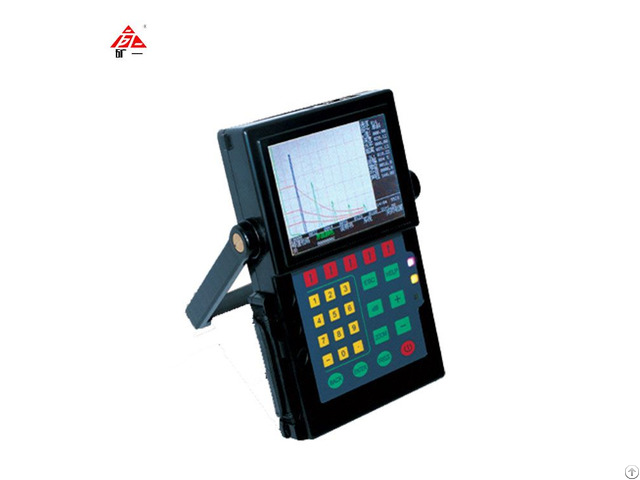

Ultrasonic Nondestructive Detector - China
price: 3.00 Dollar US$
Model: CST1
Description: CST1 Ultrasonic Nondestructive Detector Introduction: 1 - Theory: Ultrasonic is easy to be reflected when it contacts to two different kinds of medium interface.
2 - High-speed collection chip to lead to 240MHz collection speed.
3 - Automatically inspect probe “zero” point, sound velocity, “k” value and generate DAC, AVG curve, then generate a report through inputting industrial inspection standard.
Technology parameters:
1 - Frequency range: 0.4~20MHz
2 - Gain range: 0~120dB, 0.1, 2.0, 6.0dB stepping.
3 - Dynamic range: 32dB
4 - Vertical linearity: < 2.5%
5 - Horizontal linearity: < 0.1%
6 - Scanned area: 0~6000mm
7 - Resolution: > 45dB
8 - Surplus sensitivity: > 62dB (deep 200mm Φ2 flat-bottom hole)
9 - Attenuator Accuracy: < ± 1dB/12dB
10 - Working mode: single probe, double crystal probe, penetration probe.
11 - Damping: 50/100/400Ω auto match.
12 - Digits inhibition: 0~99% Linear inhibition, no influence to linear and gain.
13 - Alarm: buzzer, LED light.
Company Contact:
- Posted By: Xuzhou KY Automation Technology Co., Ltd
- Phone: +8651683890183
- Address: Building A, Science and Technology Park, China University of Mining and Technology, Quanshan distric, Xuzhou , Jiangsu , China
- Email:
Published date: June 2, 2019
- Business Description: Mining instruments and meters, include Video/Audio Recorder, Ventilation Resistance Meter, Steel Wire Lossless Flaw Detector, Mining Motor Operation Parameter Meter, Resistance Meter, Ultrasonic Flowmeter, Infrared Radiation Thermometers, Temperature and Humidity Meter, Laser Range Finder, Gas Detector, Sound Level Meter, Vibration Meter, Intrinsic Safe Digital Camera/Video Camera, Fireworks/Firecrackers Detector, Explosive Detector, Leak Tester, Optical Theodolite, Ultrasonic Lossless Tester, Bolt Wireless Force Measuring Meter, Dust Meter, Night-Vision Device, Illuminometer.
