Universal Wear Friction Testing Machine And Stoll Quartermaster - China

Testing Standards:

ASTM D3514/D3885/D3886, AATCC 119/120, FTMS 191/5300/5302, FORD EFB 15J2/BN 112-01 Applications:

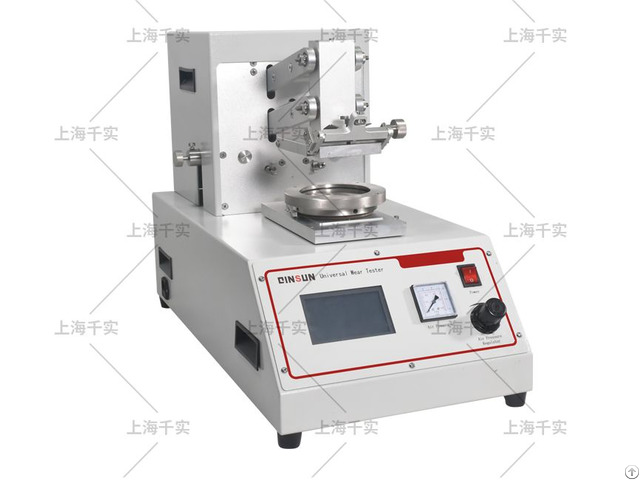

Universal Wear Tester, to determine the wear and abrasion resistance of fabric used in clothing, footwear and industrials.

Universal wear tester supplies with surface abrasion head (inflated diaphragm method) and Flex abrasion head as well as necessary weights and blades.

Accessories are available on request for conducting frosting, pilling and edge abrasion tests.

Universal wear tester (stoll universal wear tester) fitted with the built-in timer and mechanical cycle counter; repeatable and reproducible testing is ensured by consistent motor speed providing 120 double strokes per minute of 25mm (1in) stroke length.

The improved air injection system for more uniform inflation of the diaphragm used in surface abrasion testing, and a superior clamping mechanism for repeatable specimen tensioning.

Product Information:

The instrument can conduct flat grinding, curved grinding, edge grinding, fold grinding and abrasion test such as frosting resistance, welt, gigging, which is used for the woven fabric, knitted fabric and coated fabric, pile fabric, socks, felt, non-woven, deep fabric, yarn, cord, plastic film, rubber, leather, paper, and many other materials.

By the test sample can be dry, also could be immersed in water, oil, or in other liquid.

parameter：

Rotation Speed: 120rpm

Measuring Range: 25mm

Width: 570 mm

Length: 680 mm

Height: 400 mm

Power：220/110 V, 50/60 Hz

Weight：80 kg ​
