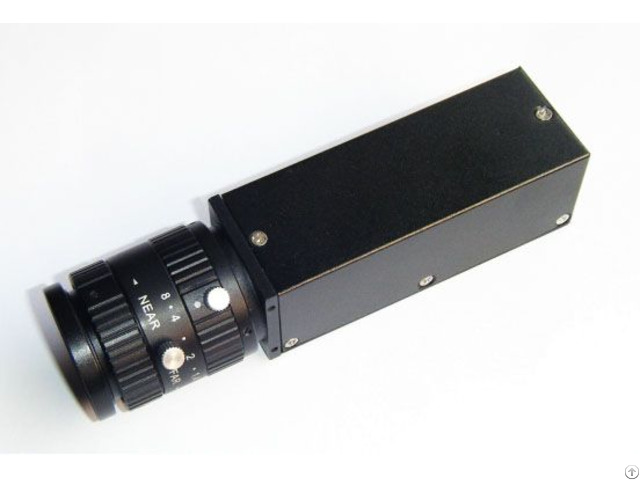

Usb3 0 H1td02c Coms Camera High Speed For Industrial Machine Vison And Inspection - China

price: 286.00 Dollar US$

JPLY USB 3.0 Camera 50fps-60fps With 2.0MP Sensor Size 1/1.8" CMOS Color/Mono

Sensor Dimension 4.5μm×4.5μm

Scan Method Progressive Scan Quantum efficiency 48%@650nm, 30%@750, NIR

Frame rate 40fps@1280x1024(8bit)

Shut ERS & Global shutter

Dynamic range 62dB

SNR 41dB

Spectrum response 400-1100nm

Data Interface USB3.0 5Gbps

Control Interface 1xR485, 2xI/O, 1xStrobe, 1xTrigger

USB Cable 3M

Power DC 5V±5%

Current <500mA

White balance Manual white balance, automatic white balance/area white balance

Exposure Time 26us~50s

Auto Exposure control Automatic/manual exposure area

Lens Mount CS interface (optional C interface)

Busy Indicator Power light, the trigger light

Working temperature 0℃-60℃

Working humidity 0-85%


Company Contact:


  • Phone: +8602038077661

  • Address: 3rd Floor ,Number 59 Tangdong East Road, Guangzhou China, Guangzhou , Guangdong , China

  • Email: Email

Published date: December 4, 2017

  • Business Description: As a global camera provider, JPLY is dedicated to balanced sustainability and responsible business.

    With quality and integrity at our core, we deliver best-in-class camera and related product.

    JPLY designs and manufactures high performance and user-friendly CCD, CMOS cameras for a vast variety of life science and industrial research applications.

    The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time.

    Being a leader of camera designer in China, JPLY is developing to a world class brand.

    We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting-edge technology, technical consulting services, integration assistance and the highest manufacturing standards.
