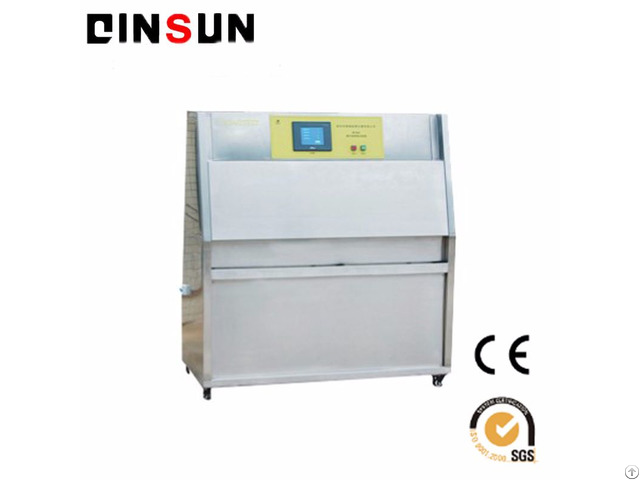

Uv Aging Environmental Test Chamber - China

Standard：

ASTM D4329, ASTM D4587, ASTM D4799 , ASTM D5208, ASTM G151, ASTM G154 , EN 927-6, EN 1297 , EN 1898 FIBC, EN 12224 , EN 13523-10 , ISO 4892-1, ISO 4892-3, ISO 11507, ISO 11895 , ISO 11997-2 , SAE J2020, EN 1062-4 Product Advantages：

UV aging chamber innovative design, compared with other UV fluorescent aging test chamber, to achieve the high performance with ease of use, accuracy and safety of a higher standard, the verification performance in line with or even more than other brands.

Multi-language touch screen interface, through the Ethernet connection for data collection, high security, optional recirculation spray device.

More other unique user easy to operate using the features Product Features：

1, 8 pieces of 40-watt UV fluorescent tubes

2, blackboard temperature (BPT) control

3, safety protection device: open the door after the dual protection of hardware and software; low water level protection; over-temperature protection

4, in line with CE standards and UL and CSA certification

5, the sample rack

6, touch screen display

7, irradiance calibration safety interface

8, easy to operate the sample fixed ring This UV Aging Environmental Test Chamber uses fluorescent UV lamps, combined with temperature and humidity device to simulate the material decline in color, brightness, strength and cracking, spalling, powder, oxidation damage via the high temperature sun light (UV), high humidity, condensation, dark cycle etc.

At the same time, through the synergy between UV and moisture resistance ability of single or single material makes wet ability weakening or failure, which is widely used to evaluate the performance of weather resistant materials, equipment is to provide the best sunshine UV simulation.

Usage and maintenance are of low cost, easy to use.

Equipment uses program controller can automatic control the test cycle, with high automatic high degree.

In addition, it has stable light performance and high rate of repetition test results.

Technical Parameters

(1) Working chamber size: 1140mm×400 mm×380.

(2) Overall dimensions: 1300mm×500 mm×1460 mm.

(3) Central distance of lamp: 70mm.

(4) Nearest parallel distance between specimen and light: about 50mm.

(5) Wavelength range: UV-A 315~400nm.

(6) Radiation strength: 1W/m2/ within 340nm.

(7) Temperature resolution: 0.1oC.

(8) Illumination temperature range: 50oC~70oC/Tolerance ±3oC.

(9) Cooling temperature range: 40oC ~60oC/Tolerance±3oC.

(10) Blackboard thermometer measuring range: 30~80oC/Tolerance±1oC.

(11) Control method: PID Automatic control.

(12) Humidity range: About 45%~70%R.H.

(13) Water groove: Water depth no big than 50mm, with automatic water supplying device.

(14) Standard specimen size: 75×150mm 48pcs.

(15) Suggest working condition: 5~35oC, 40%~85%R•H, space with wall 300mm.

(16) Power: 220V±5%, 50Hz, 10A, with 15A electric leakage switch.
