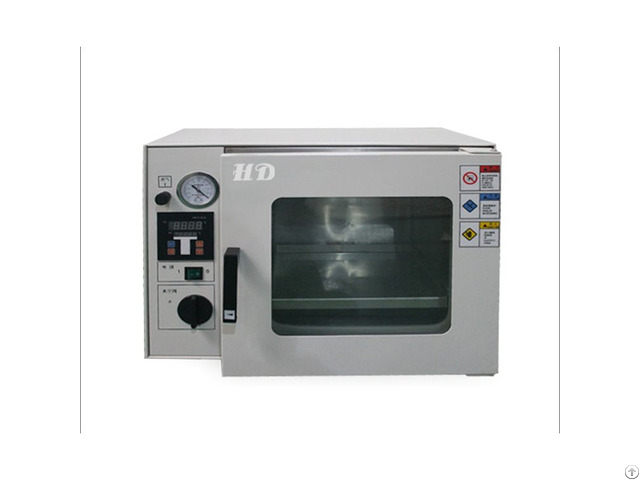

Vacuum Oven - China

Application: The DP Series vacuum ovens provide the right temperature and vacuum environment.

Do vacuum drying or thermal test under vacuum conditions in the fields of electrical, electronics, aviation and other related fields.

The vacuum drying oven can independently perform low pressure test, or comprehensive high temperature for comprehensive test.

Based on years of experience in the field of environmental simulation equipment, the company has optimized the temperature field of the vacuum drying oven, and the technical indicators have reached the first-class level in the industry.

Features:

1 - The shell of the vacuum oven is made of cold-rolled steel plate and coated with double-sided electrostatic epoxy polyester powder.

2 - The pressure-bearing inner chamber is made of SUS304 stainless steel plate.

3 - Use centrifugal glass insulation cotton felt insulation.

The hinge of working chamber is installed on the left side of the oven to ensure optimum contact pressure when the door is closed.

4 - The controller is installed in the middle or lower part of the oven.

5 - The electrical components are installed in the electric control cabinet, and the operator and test samples can be fully protected.

Model: HD-02DP;

Volume: 216 L;

Internal dimensions (D*W*H): 600*600*600 mm;

External dimensions (D*W*H): 820*820*1670 mm

blind flange: on the back wall of the drying oven; Temperature range: Room temperature + 20℃.

200℃;

Temperature fluctuation : ≤ 1 ℃;

Pressure range: Atmospheric pressure.

1kPa;

Controller: International well-known brand temperature controller, digital display temperature control, with PID self-tuning function, PID+SSR temperature control;

Heater: Nickel-chromium alloy electric heater;

Power supply: AC 380V/50Hz, three-phase four-wire + earth wire;
