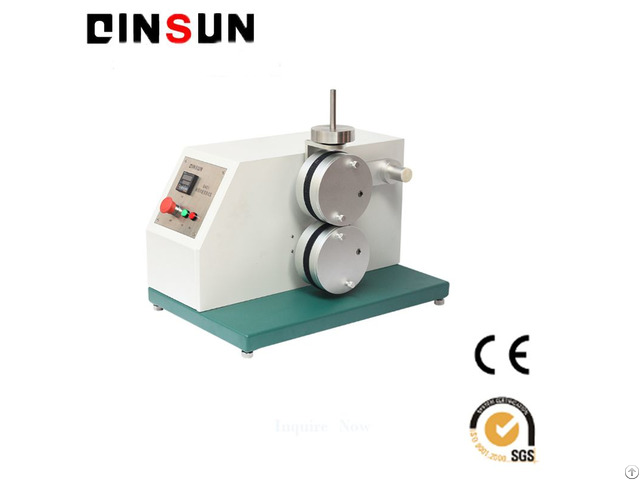

Velcro Fatigue Tester For Opening And Closing The Hook Loop Fasteners - China

A hook and loop fastener is repeatedly opened and closed for a specified number, and then is rolled by a roller to the hook side and the loop side to stick closely so as to determine the adhesive force and strength.

This machine has a memory function.

You can adjust the force applied to the specimen by adjusting the counterweight and load.

Standards:

DIN-3415, SATRA TM123, ISO 22776, GB/T 3903.20, GB/T 3903.21, GB/T 23315-2009 Technical Parameters:

1 - Wheel diameter: the previous round φ162.5mm, the next round φ160mm;

2 - Wheel width: 70mm;

3 - Rolling speed: 60rpm / min;

4 - Fixture slot: width 4mm, length 55 ± 2mm;

5 - Reverse time: 30s reverse;

6 - Tests: 5000 times;

7 - Load: 5kg;

8 - Counter: Counter: LCD liquid crystal display, 0-999999;

9 - HP: AC1 / 8HP dual-frequency motor;

10 - Instrument material: stainless steel;

11 - Surface treatment: painting;

12 - Volume: 70 × 47 × 60cm;

13 - Weight: 51kg;

14 - Power: AC220V, 50HZ, 5A.

Standard configuration:

Velcro fatigue testing machine 1 Taiwan

5kg weight 1

Power cord 1 Features:

1 - Determine, opening and closing strength;

2 - Digital reading;

3 - Construction, in compliance with the standards ;

4 - Velco Strips Test weights are supplied with tester;

5 - Can be used with every kind of Velcro strips;

6 - Rotation – Meter provides the pre-determined number of tests;
