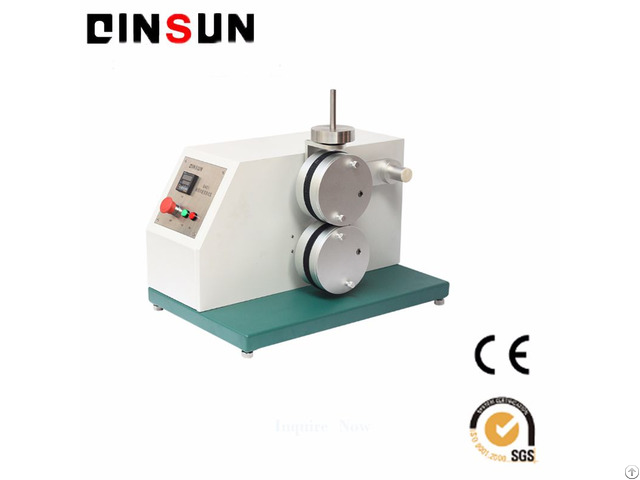

Velcro Tape Fatigue Testing Machine Iso 22776 - China

Velcro Tape Fatigue Testing Machine ISO 22776, to determine the capability of fastening tape used for shoes, garments, etc.

Fastening tape Tester complies with ISO 222776, SATRA TM 123, DIN-3415, etc.

Standards:

DIN-3415, SATRA TM123, ISO 22776, GB/T 3903.20, GB/T 3903.21, GB/T 23315-2009 Technical Parameters:

1 - Wheel diameter: the previous round φ162.5mm, the next round φ160mm;

2 - Wheel width: 70mm;

3 - Rolling speed: 60rpm / min;

4 - Fixture slot: width 4mm, length 55 ± 2mm;

5 - Reverse time: 30s reverse;

6 - Tests: 5000 times;

7 - Load: 5kg;

8 - Counter: Counter: LCD liquid crystal display, 0-999999;

9 - HP: AC1 / 8HP dual-frequency motor;

10 - Instrument material: stainless steel;

11 - Surface treatment: painting;

12 - Volume: 70 × 47 × 60cm;

13 - Weight: 51kg;

14 - Power: AC220V, 50HZ, 5A.
