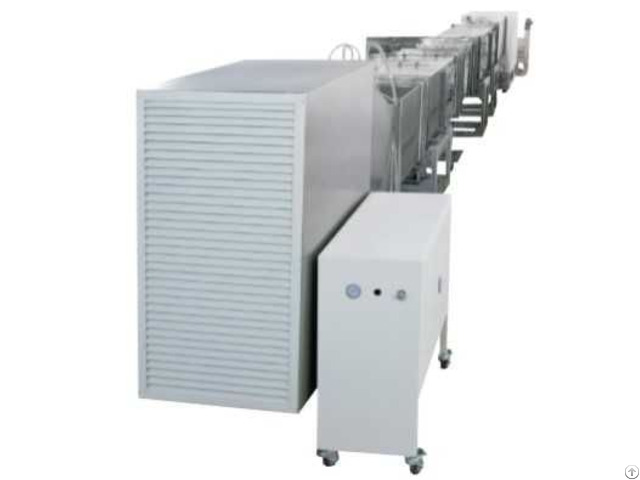

Ventilation Filter Test Stand - China

Introduction The Ventilation Filter Test Stand test stand is used to test the initial resistance, final resistance, counting efficiency, gravimetric efficiency, dust holding capacity and other conventional performance for grade G, M, F filters, generate forms and curve, and automatically grade the tested filters.

Standards EN779: 2012 Particulate air filters for general ventilation - determination of the filtration performance.

GB/T 14295-2008 Air filters standard.

Technical Parameters Item Parameters

Flow 500 - 5000m3/h

Resistance 0 - 500Pa, 0 - 100Pa ±5Pa；≥100Pa ±5%

Efficiency range 20 - 99.9%(≥0.5μm)

Particle size 0.4μm(EN779)；≥0.5μm (GB/T 14295)

Aerosol source DEHS

Covering area 14000 x 2500mm

Power 6KW Note：QINSUN is very in place for textile testing and quality control, we have our own textile testing lab.
