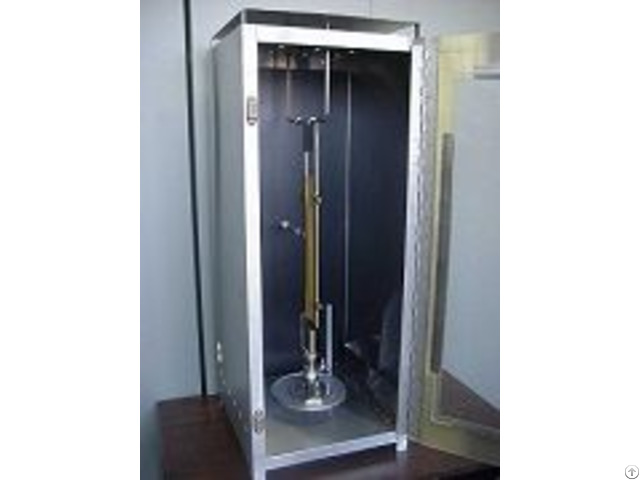

Vertical Flammability Chamber For Measuring The Flame Spread - China

Testing Standards: ASTM D6413-99, DOC-FF 3/71, CALIF TB-117, GB/T 5455, CPAI-84 Applications:

Vertical Flammability Chamber for measuring the vertical flame spread for childrens’ sleepwear, fabrics, other textile materials or resilient filling materials used in upholstered furniture.

Comprises a draft free stainless steel cabinet with observation window and back wall painted black for easy test viewing.

The different specimen holders and associated hardwares are dependent on the test standards.

Automatic Gas Control System could easily control the combustion process.

Product Information:

A.

Designed with a sealing stainless steel combustion cabinet with observation window;

B.

Fitted with standard combustion chronograph, for accurate detection of flame spread rate;

C.

Different specimen holders and associated hardwares for various test standards;

D.

Automatic Gas Control System including solenoid control gas valve and automatic ignition timer and controls.

Configuration and consumables of Vertical Flammability Chamber:

AUTOMATIC GAS CONTROL, 230V Automatic Gas Control System

Accessories for ASTM D6413-99 TEST PKG(VFC, REQ), FTMS 191-5903(Fabrics) Optional：

1 - CHILD.

SLEEPWEAR TEST PKG(VFC, NA)

Accessories for DOC-FF3/71 (Childrens’ Sleepwear)

Include:

- 1 x Burner

- 5 x Specimen Holders

2 - CALIF.

TB-117 TEST PKG

Accessories for CALIF TB-117 (Resilient Filling Materials Vertical)

Include:

- 1 X Burner

- 5 X Specimen Holder

- 1 X Weights

3 - CPAI-84 TEST PKG

Accessories for CPAI-84(Tent)

Include: Burner, Specimen Holder, Weights
