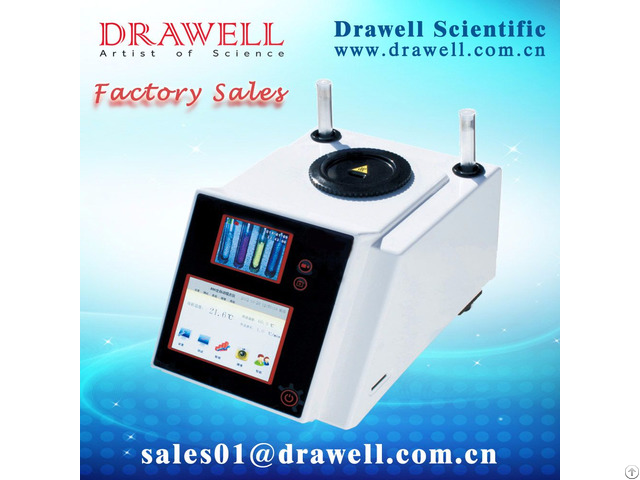

Video Melting Point Meter - China

Improve innovative efficiency

1: high-definition video instead of traditional visual microscope;

2: a deal with four samples;

3: compatibility measurement in shape of power and pieces of melt(optional)

Model JH30 JH50

Temperature range RT-350℃ RT-400℃

Detection method Semi-automatic Semi-automatic

Capacity per batch 4pc.

/batch 4pc.

/batch

Temperature resolution 0.1℃ 0.1℃

Temperature gradients (0.1-20.0)℃/Min (0.1-20.0)℃/Min

Temperature accuracy ±0.3℃(<250℃) ±0.3℃(<250℃) ±0.5℃(>250℃) ±0.5℃(>250℃)

Repeatability ±0.1℃(At 0.1℃/Min) ±0.1℃(At 0.1℃/Min)

Exploration model — —

Camera&Video Camera Camera&Video

Video playback — YES

Magnification 7 7

Operator account — 8

Result storage 200 400

SD card capacity 8G 8G

Display TFT Touch screen TFT Touch screen

Interface USB RS232 SD card Enternet USB RS232 SD card Enternet

Standard capillary size I.D.1.0mm, O.D.1.4mm I.D.1.0mm, O.D.1.4mm

Power 110-220V50/60HZ 120W 110-220V50/60HZ 120W
