Vt-10c Phoropter - China

GD05008

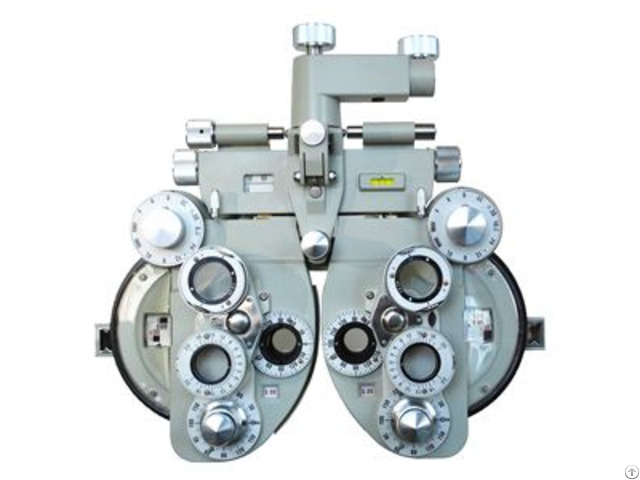

Phoropter

Model No: VT-10C

FEATURES:

1 - Elegant design of butterfly-shape appearance

2 - High grade plated-film used in all optic lenses

3 - This device is applicable to ophthalmology department of hospitals and spectacle stores for precision measurement of visual functions such as myopia, hyperopia, astigmatism, eyesight balance, heterophoria, stereoscopic vision and eyesight amalgamation

4 - Two colors for option

SPECIFICATIONS:

M anual Phoropter

Sphere power Range:

+16.75D to-19.00D, with minimum reading 0.25D or 0.12D

(when+0.12D auxillary lens or optional ±0.12D lens in use)

+26.75D to-29.00D (when optional ±10.00D lens is in use)

Cylinder power range:

0 to-6.00D, with minimum reading 0.25D or 0.12D

(when auxiliary lens is in use)

0 to-8.00D (when-2.00D auxiliary lens is in use)

Astigmatic axis scale: 0 to 180 in 5 steps

Cross cylinder:

±0 - 25D, reversal type (synchronized with astigmatic axis) ±0 - 50D optional

Rotary prism: 0 to 20ΔD in1ΔD step

PD adjustment:

48mm to 80mm in 1mm step (right and left synchronized)

Forehead rest adjustment: 16mm backward and forward

Convergence:

The optical axes of the lenses are aligned at a distance of 400mm from the vertexes of the comeas.

(2mm each for right and left inward) Interpupillary distance enabling convergence=57mm to 80m

Corneal distance device:

2mm forward and 5mm backward from standard plane: with scale

Effective field of view: 19mm

Weight: NW 5kgs; GW 6kgs

Dimensions: 323mm*315mm*85mm

Company Contact:

• Posted By: Yiwu Goddon Vision Technology Co., Ltd.

• Phone: 86057985609259

• Address: No. 12-3, Dongfang Building, Choucheng Street, Yiwu , Zhejiang , China

• Email:

• Website: http://www.goddonoptics.com

• Business Description: Goddon Vision is a supplier of quality optometry and ophthalmic equipment in China,

  We have been dedicated themselves as to be a reliable partner for foreign ophthalmic importers and agents from all over the world.

  Our core business has distinguished itself as a company that offers a wide range products of auto refractometers, auto ref-keratometers, auto lensmeters, auto lens edgers, phoropters, slit lamps, vision test apparatus, optometry equipments, optical lab machineries, and also a large variety accessories for optometry and ophthalmic industry.

  We hope we can help make your visit a productive and informative one, Please contact us by phone or email for a price quote, literature request or for any related product questions you have, We look forward to hearing from you.
