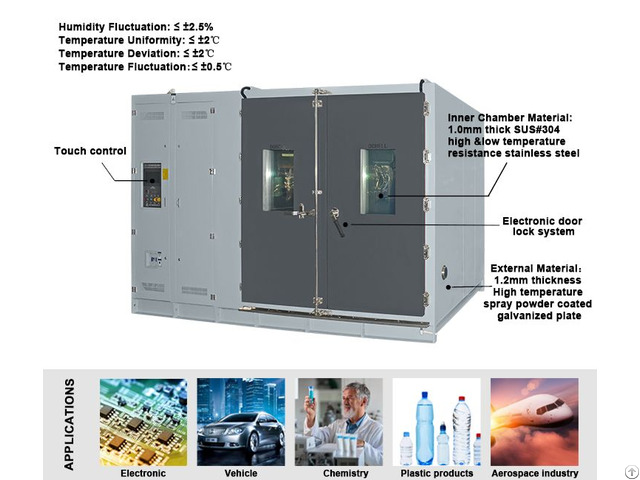

Walk In Temperature Humidity Environmental Climate Cabinet Chamber Room - China

Application: Bell’s China Supplier Constant Temperature And Humidity Test Chamber is perfectly meet the large size test application that require high temperature and high humidity.

The chamber is constructed with structural steel, the steady structure able to test the large components and products.

Various optional function available for different test standard and requirement.

Features: 1 - Energy efficient technology, more stable, durable longevity.

2 - Steel structure, Stainless steel interior cabinet, easy to clean.

3 - Test data logging output with USB memory stick.

4 - RS485 and Ethernet remote control.

5 - Alarm notification via phone available.

6 - Programmable Standard Compliance: 1 - IEC68-2-1 (GB/T2423.1-2008) 2 - IEC68-2-2 (GB/T2423.2-2008) 3 - IEC68-2-3 (GB/T2423.3-2006) 4 - IEC68-2-30 (GB/T2423.4-2008) 5 - IEC68-2-14 (GB/T2423.22-2008) 6 - MIL-STD-810D (GJB150.3A-2009) 7 - MIL-STD-810D (GJB150.4A-2009) 8 - MIL-STD-810D (GJB150.9A-2009) Product specification: Model BTHW-6M BTHW-8M BTHW-10M BTHW-15M BTHW-30M BTHW-80M Test Space W x H x D (mm) 2000*2000*1500 2000*2000*2000 2500*2000*2000 3000*2200*2500 5000*2000*3000 4000*2500*8000 External Dimension W x H x D (mm) 3350*2280*1800 3350*2280*2300 3850*2480*2300 4350*2480*2800 5200*2280*4350 4200*2780*9700 Performance parameters: Temperature Range A: 0~90℃ B: -20~90℃ C: -40~90℃ D: -70~90℃ Humidity Range 20%RH-98%RH Low humidity : Maximum 5%R.H. Temperature Fluctuation ≤±0.5℃ Temperature Deviation ≤±2℃ Temperature Uniformity ≤±2℃ Humidity Fluctuation ≤±2.5% Humidity Deviation ≤+2/-3%R.H. (when humidity >75%RH), ≤±5RH% (when humidity <75%RH) Heating Rate Approx 1~ 3℃/mins, average non-linear, no load Cooling Rate Approx 0.5~ 1℃/ mins, average non-linear, no load Temperature Overshoot ≤±2℃ Internal Material 1.0mm thick SUS#304 high &low temperature resistance stainless steel.

External Material 1.2mm thickness High temperature spray powder coated galvanized plate Compressor Tecumseh (France)-fully air-cooled double-fall cooling compressor.

Or Bock (Germany) semi-enclosed air-cooled refrigeration.

Options Dry air purge system, Humidifying water auto purifying and supply system, New air ventilation system, Fire-proof, explosion-proof & alarm system, Low temperature low humidity, low temperature high humidity test requirement, Remote computer, mobile alarm function

Company Contact:

• Posted By: Bell Experiment Equipment Co., Ltd

• Phone: +86 136 1276 1334

• Address: No. 11, Wusong 1st street, Yuwu, East City District, Dongguan , Guangdong , China

• Email:

• Website: https://belltestchamber.com

• Business Description: Our company is specialized in Battery Safety ( Performance ) Testing Equipment and Environment ( Climatic ) Reliable Test Chamber over ten years.

  And the machine is design and manufacture according to the relevant standards such as GB, GJB, IEC, ISO, MIL, DIN, CE, ASTM, UN, UL etc.
