Xj 50d Digital Display Charpy And Izod Impact Testing Machine - China

price: 5000.00 Dollar US$

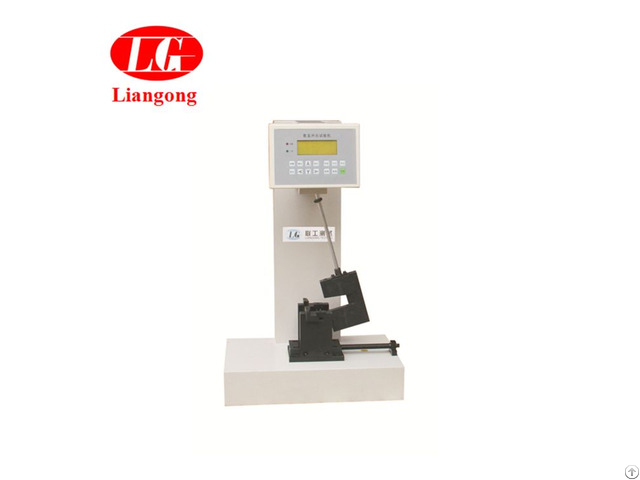

Xj 50d Digital Display Charpy And Izod Impact Testing Machine

Products Photos Catalog 50d Digital Display Photos Catalog

Usage XJ-50D digital display Charpy and Izod combined Impact testing Machine used to measure plastic, enhance nylon, glass fiber reinforced plastic, ceramic, and cast stone, plastic appliances, insulating materials and nonmetal material impact toughness.

This tester can be used for research agencies, universities and colleges, nonmetallic material factory and other units or the inspection department for the laboratory experiment.

The machine adopts circular grating angle measuring technology, the digital measurement of material in a thrust in the process of absorbing energy and material impact strength, and have full energy loss detection and correction function.

With high precision, good stability, large measurement range and other features, is a fully digital pendulum impact testing machine It correspond these standards: ISO179, ISO180, GB/T1043, GB1834, JB/T8761, ASTM D256, ISO9854 and so on.

Charpy impact: 1 - Impact speed: 2.9m/s, 3.8m/s ; 2 - Pendulum energy: 1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J; 3 - The distance between pendulum center and sample center: 221mm, 380mm; 4 - Pendulum angle: 160°; 5 - Pendulum torque: Pd1=0.5155N.

m Pd2=1.0311N.

m Pd4=2.0622N.

m Pd5=2.5777N.

m Pd7.5=3.8662N.

m Pd15=7.7324N.

m Pd25=12.8888N.

m Pd50=25.777N.

m 6 - Jaw length: 85mm 7 - Clamp mouth supporting spacing: 40mm, 60mm, 70mm, 95mm; 8 - Supporting blade fillet radius: R=1mm; 9 - Impact blade Angle: 30°; 10 - Impact blade fillet radius: R=2mm ; 11 - Sample type size, supporting spacing(Unit: mm); Sample type Length Width Thickness Supporting distance 1 80±2 10±0.2 4±0.2 62+0.5 2b 3b 25h 11h or 13h 10 or 15t 3d 20h 6h or 8h a.

The specimen dimensions (thickness h, width b and length l) are defined by h


Company Contact:


  • Phone: +86 18854162067

  • Address: Room 605, Fortune Times Square,Jingshi Road, Huaiyin District, Jinan , Shandong , China

  • Email: Email


Published date: October 21, 2021

  • Business Description: Our factory is the professional manufacturer in the Chinese Material Physical Testing Machine Industry, which include the UTM and TTM series, Impact Test series, Compression Test series, Cupping Tester series, Hardness Tester and Metallographic products, etc.
