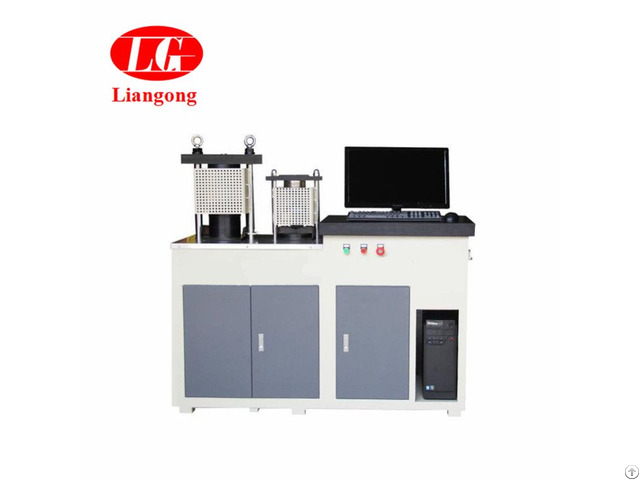

Yaw 300c Computer Control Compression Flexural Testing Machine - China
price: 7500.00 Dollar US$
1 - Product description The test machine is mainly used for compressive strength test of cement, concrete, rock, red brick and other materials; the measurement and control system adopts high-precision digital servo valve, and has a closed-loop control function to achieve constant force loading.
The machine runs stably and reliably.
It can also be used for the compression test of other materials or the flexural performance test of concrete slabs after the installation of special fixture.
Widely used in cement plants and quality inspection stations at all levels.
2 - Technical Parameter Item Compression Flexural Max.
Test Force 300kN 10 Test Measurement Range 20kN-300kN 1-10 Test Force and Relative Error Value ≤±1% ≤±1% Upper and Lower Compression Plate Space 250mm 190mm Max.
Piston Stroke 80mm 60mm Tow column space 245mm 180mm Compression Plate size φ160mm φ160mm Motor Power 0.75KW
Company Contact:
- Posted By: Jinan Liangong Testing Technology Co.,Ltd.
- Phone: +86 18854162067
- Address: Room 605, Fortune Times Square,Jingshi Road, Huaiyin District, Jinan , Shandong , China
- Email:
- Website: http://www.lgtester.com
Published date: November 11, 2021 - Modified date: November 11, 2021
- Business Description: Our factory is the professional manufacturer in the Chinese Material Physical Testing Machine Industry, which include the UTM and TTM series, Impact Test series, Compression Test series, Cupping Tester series, Hardness Tester and Metallographic products, etc.
