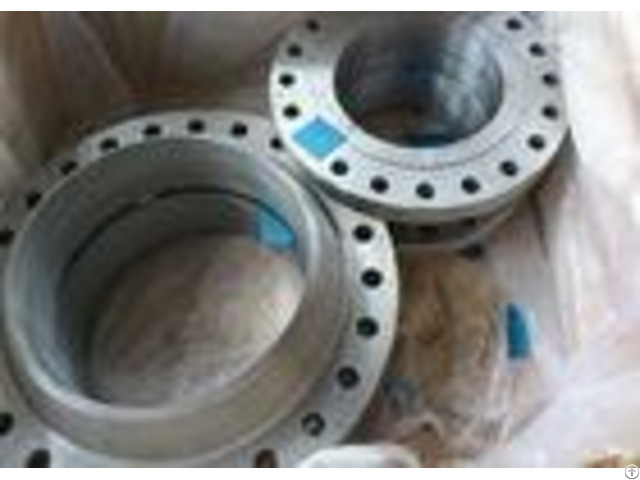

Long Weld Neck Stainless Steel Pipe Flange Plate Class 150lbs 3000lbs Rate - China

A flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system.

It also provides easy access for cleaning, inspection or modification.

Flanges are usually welded or screwed.

Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal.

We are strength in stainless steel flanges, such as SO flange, WN flange, Blind, Threaded flange, SW flange, Anchor Flange, Long welding neck flangeetc, customized fabrication is available.

Rate: Class 150LBS ~ 3000LBS Dimension: 3/8 to 72 (DN10 ~DN1800) Material: - - - - Stainless Steel: | ASTM A/SA182 F304, F304L, F316, F316L, 316Ti, F317L, F321, F321H, F310H, F347H, N08904, F44 etc.

(W1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4878, 1.4550, 1.4845, 1.4539, 1.4547 etc.

).

| Duplex&Super Duplex: | ASTM A/SA182 F51, F53, F55, F59, F60(w1.4462, 1.4410, 1.4501, 1.4507 etc.

) | Nickel Alloy: | ASTM B564 N10276, N04400, N06600, N06601, N06625, N08800, N08020 (w2.4819, 2.4360, 2.4361, 2.4816, 2.4851, 2.4856, 1.4876, 1.4958 )etc.

| Other Alloys: | ASTM A105, A105N; St37.2, C22.8; ASTM A182 F11, F12, F22, F5, F91; ASTM A350 LF2, LF3; ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70 etc.

| - - - - Specification: - - - - ASME/ANSI B16.5-1996 and B16.47-1996 | Tolerances on flange dimensions (ASME/ANSI B16.5 and B16.7, and MSS SP-44) | Dimension | Range | Tolerance | in | mm | General and Blind Flanges(For blind flange dimendions see page 8-23 for B16.5, page8-46 for B16.47 Series A/ MSS SP-44 and page 8-51 for B16.47 Series B/ API 605): | G(raised face diameter) | NPS 24 | 0.03 | 0.76 | NPS 26, with 0.06 in raised face | 0.08 | 2.03 | NPS 26, with 0.25 in raised face | 0.04 | 1.02 | I(bolt hole diameter) | All | No tolerance in B16.5 or B 16.47 | J(bolt circle diameter) | All | 0.06 | 1.52 | Center to center of adjacent bolt holes | All | 0.03 | 0.76 | Eccenticity of bolt circle and machined facing diameters | NPS 2 | 0.03 | 0.76 | NPS 3 | 0.06 | 1.52 | Weld Neck Flanges1 (For dimensions see page 8-10 for B 16.5, page 8-46 for B16.47 Series A/ MSS SP-44 and page 8-51 for B16.47 Series B/ API 605): | D(overall length) | NPS 4 | 0.06 | 1.52 | NPS 5 to 10 | 0.06, 0.12 | 1.52, 3.05 | NPS 12 to 24 | 0.12, 0.18 | 3.05, 4.57 | NPS 26 | 0.19 | 4.83 | Thickness of hub | All | 87.5% of pipe nominal wall thickness | Slip on(see page 8-17), Lap Joint(see page8-32) and Socket Welding(see page 8-30 for dimensions) Flanges: | B(inside diameter, or bore) | NPS10 | 0.03, 0.0 | 0.76, 0.0 | NPS12 | 0.06, 0.0 | 1.52, 0.0 | Threaded Flanges (see page 8-40 for dimensions): | B(counterbore) (Not applicable for Class 150 lb | NPS10 | 0.03, 0.0 | 0.76, 0.0 | NPS12 | 0.06, 0.0 | 1.52, 0.0 | - - - -
