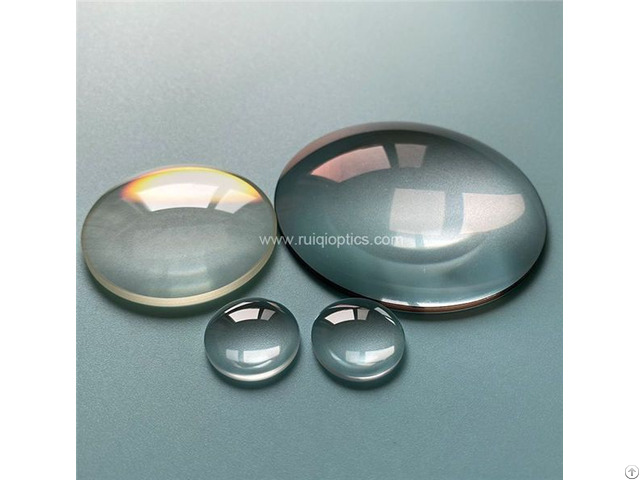

Aspheric Plano Convex Lens - China

Aspheric lens is an optical element which have a complex radius of curve, at least one surface is not spherical.

The radius of curve is gradually change from center to edge, there have a specified formular of aspheric lens which designed by customers.

Compare with spherical lens, aspheric lens reduces or minimizes spherical aberrations, for example, astigmatism, field curvature, and distortion.

Substrate K9, Fused silica, Sapphire, CaF2, Silicon, Germanium, Znse, ZnS optical glass as choice

size 5-300mm

Dimension Tolerance +0/-0.1mm

Focal Length Tolerance +/-1%

Surface Quality 60/40-10/5 as request

Surface Flateness lambda/4-lambda/10

CA >90%

Centration <3'

Chamfer <0.2*45degree

Painting Black Edges as customer demand, and Mounted as request

Coating AR, BBAR, Metal Coating(Silver, Gold, Aluminum), Dielectric
