Pvg Solid Woven Conveyor Belt - China

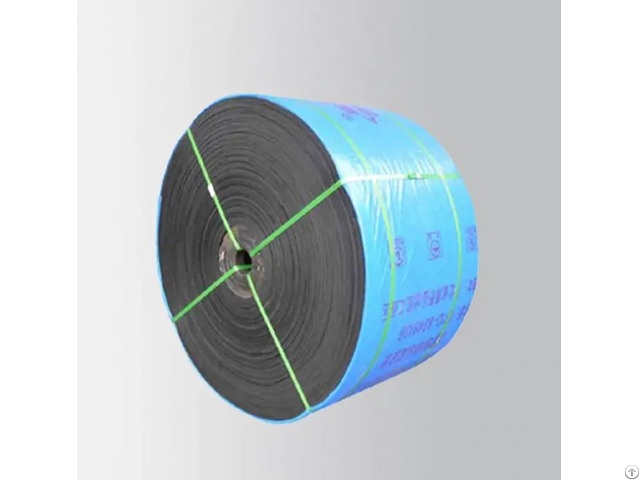

PVG Solid Woven Conveyor Belt

PVG woven conveyor belt, both top and bottom covers are PVG compound, much suitable to working at higher slope (better no more than 20 degree).

PVG Conveyor Belt

PVG solid woven conveyor belts are formed by plasticizing or vulcanizing a solid woven core, dipping into PVC slurry and adding a PVG cover layer.

The PVG conveyor belt is covered with a rubber-based coating, which further improves the belt's grooving, wet skid resistance, low temperature resistance, elongation and wear resistance.

PVG Solid Woven Belts Application

PVG conveyor belts are suitable for applications with an inclination angle of less than 20 degrees, thicknesses are available from 1 to 8 mm.

This conveyor belt is mainly used for underground coal transportation, and also used in Metallurgy, power stations, chemical and metallurgy industries.

Features of Solid Woven Refractory PVG Conveyor Belt

1 - Advanced soakage technology

The unique solid woven belt soakage technology can make PVG paste soak well.

Thus, the paste and solid woven fabric become the all and the one, which ensures the belts impact resistance property.

2 - Cover rubber with excellent properties

The special cover rubber of PVG solid woven belt has excellent properties, which represent at excellent physical properties on the basis of ensuring the safety properties.

Thus, the cover rubber can give the carcass first-rank protection.

3 - Bone materials with high tensile strength

The special multiple tiers integrate with each other so as to reach high tensile strength and weft&warp tear resistance, light carcass weight, and save the power energy for transportation.

High tensile strength, large volume, stable transportation, fire/anti-static/corrosio n resistance.

4 - Excellent flame resistance property.

5 - It has moisture resistance, slip resistance, low temperature resistance and abrasion resistance.

6 - Low temperature resistance.

7 - Good elasticity and impact resistance.

8 - Low rated load elongation, suitable for long distance transportation.

9 - Tear resistance, good bending ability.

10 - Economical price and long service life.

Main Properties and Specification of PVG Belt

Standard MT914-2008 BS3289 HG2805 Selection Safety Coefficient 10(Elongation*1/10)

Standard Type Corresponding Grade slope <20℃ Tensile Strength≥, Nmm Elongation ≥, % Suggested Min-diameter of Transmission Drum Longitudinal Horizontal Longitudinal Horizontal 680s Grade 4 680 265 15 18 400

800s Grade 5 800 280 500

1000s Grade 6 1000 300 630

1250s Grade 7 1250 350 750

1400s Grade 8 1400 350 750

1600s Grade 9 1600 400 800 PVG woven conveyor belt structure

The upper and lower glue of PVG belt is nitrile rubber and PVC, and the thickness of single-sided glue: 1.5mm-4.5mm.

Each set is ≥1.5mm-4.5mm, and the conveying angle is <20°.

Tensile Strength & Width

Tensile strength: 500～4000N/mm Width: 500～2000mm.

Welcome to contact us, we are a professional pvg conveyor belt manufacturer.
