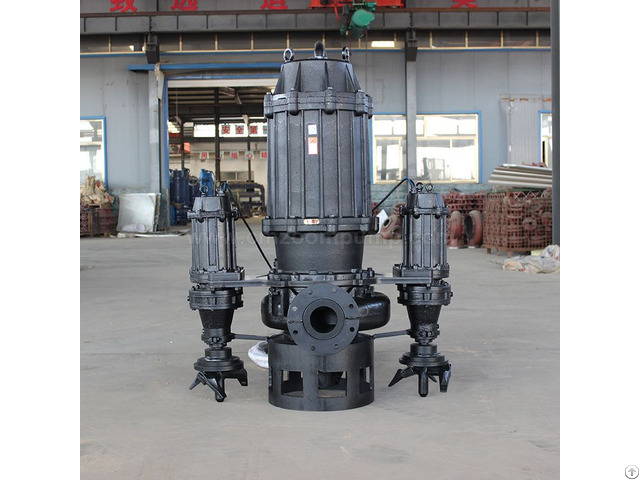

ZJQ Submersible Slurry Pump

Overview of ZJQ submersible slurry pump:

The ZJQ submersible slurry pump is a hydraulic machine in which the motor and the water pump are coaxially submerged into the medium.

The product has excellent material selection, excellent structure, wide flow passage and strong sewage discharge capacity.

It is suitable for conveying liquids containing solid particles such as sand, coal slag, tailings, etc.

It is mainly used for the removal and transportation of slurry liquids in metallurgy, mining, thermal power plants and other enterprises.

It is an ideal substitute for traditional mud pumps.

This series of products is designed and manufactured by absorbing advanced technology.

In addition to the main impeller, a set of stirring impellers are added to the bottom of the pump, which can spray the deposited sludge into turbulent flow.

The pump can achieve high-concentration transportation without auxiliary devices.

The operating reliability of the unique sealing device greatly extends its service life.

The electrode adopts overheat protection, and various protection devices such as near-water detection can be added according to user requirements, which can operate safely under severe working conditions.

The performance parameters are as follows:

Flow range: 15-2000m3/h

Head range: 10-95m

Maximum passing particle size: 92mm

Structural features and working principle: ZJQ submersible slurry pump:

The ZJQ submersible slurry pump is a coaxial integration of the water pump and the motor.

When working, the motor shaft drives the water pump impeller to rotate, and transfers energy to the slurry medium to generate a certain flow rate, drive the solid to flow, and realize the slurry transportation.

Its main features are as follows:

1 - The motor is protected by a mechanical seal, which can effectively prevent high-pressure water and impurities from entering the inner cavity of the motor.

2 - In addition to the main impeller, there is also a stirring impeller, which can stir the sludge deposited on the bottom of the water into a turbulent flow and then extract it.

3 - The main flow parts such as impeller and stirring impeller are made of high wear-resistant materials, which are wear-resistant, corrosion-resistant, non-clogging, and have strong sewage discharge capacity, and can effectively pass larger solid particles.

4 - It is not limited by the suction range, the slurry suction efficiency is high, and the silt dredging is more thorough.

5 - There is no need to equip auxiliary vacuum pump, so the investment is lower.

6 - There is no need to be equipped with auxiliary stirring or spraying devices, making the operation easier.

7 - The motor is submerged under water, no complicated ground protection and fixing devices need to be built, and the management is easier.

8 - The stirring impeller directly contacts the deposition surface, and the concentration is controlled by the depth of the dive, so the concentration control is more free.

9 - The equipment directly dives into the water to work, there is no noise and vibration, and the site is more tidy.
