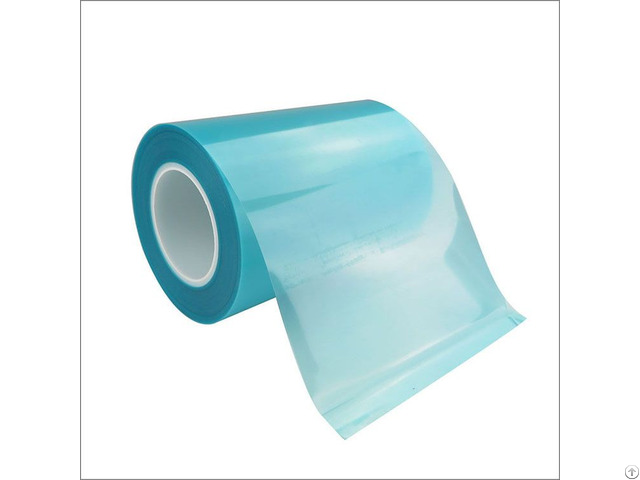

High Gloss Uv Sheet Self Adhesion Protective Film Adhesive Dicing Tape - China

about uv productive film UV film is a special formulation coating on the surface of PET film substrate, In order to achieve blocking ultraviolet light and short wavelength visible effect.

Suitable for optical etching process or UV isolation industry such as semiconductor industry, electronics industry, etc.

Avoid improper light leakage resulting in poor product quality, after UV light irradiation can be weak viscosity for separation.

UV FILM characteristic

1, high adhesion when cutting, UV irradiation viscosity is very low when picking up the chip does not fly, no residual glue.

2 - Rapid reaction time of UV irradiation, effectively improving work efficiency.

3, with appropriate expansion.

UV film Application: Suitable for cutting LED lamp on EMC or ceramic substrate, QFN, PCB, Package of semiconductor chip, PLC components, head of optical fiber component, Glass filters, etc.

Product name UV adhesive film, UV protective film Base material PEI(Polyester Film)or PO Adhesive silicone adhesive Color Transparent/milky white (mist) Thickness 0.09mm, 0.1mm, 0.115mm, 0.15mm, 0.16mm, 0.17mm Specification Width 230mm, 300mm, 980mm, 1070mm, length 100m Viscosity Low viscosity, Mid-viscosity, high viscosity Conventional viscosity 600g-1800g Heat-resistance Long-term120℃, Short-term 80℃(30s) Function Anti-static (optional), acid and alkaline resistance

Type：UV Protection Pe Film Protective Film

Color：Transparent, blue, white, black and white

Thickness：0.02-0.15m m++

Product name：UV Film

Width：20-1650mm

Hardness：soft

Company Contact:

• Posted By: Shenzhen Dowell Adhesive Products Co.,Ltd

• Phone: +8615919498439

• Address: Room 801, No. 318, Zhen'an Middle Road, Shatou Community, Chang'an Town, Shenzhen , Guangdong Province, China

• Email:

• Website: https://dowelltape.en.alibaba.com/

• Business Description: Shenzhen Dowell Adhesive Products Co., Ltd. was established in 2015 and is located in Baoan District, Shenzhen.

  It is a manufacturer of various films, adhesive products and technical solutions integrating independent research and development/coating/die cutting processing/sales.

  At present, the company has a number of imported coating lines and advanced precision die-cutting equipment, has many years of production and sales experience, and is committed to technological innovation, product innovation, and high-quality products.

  Can meet the needs of our customers.

  Has established long-term cooperative relations with major brand companies!

  Core products: protective film, functional protective film, high temperature tape, insulating tape, special tape, high temperature double-sided tape, strong double-sided tape, pet double-sided tape, transparent double-sided tape, foam tape, single-sided tape, conductive shielding Materials, heat-dissipating materials and agents of imported 3m double-sided tape, tesa, Nitto and other brands.

  Products are widely used in semiconductor/communicati on/optoelectronics/digita l/electronics/industrial/ medical equipment/aerospace and other fields.

  Dowell tape will provide you with one-stop service, from the development and proofing of requirements, product cost evaluation, and launch the best solution.

  The company adheres to the tenet of "good quality, excellent service, and high efficiency".
