1670mm Long Small Fork Truck 4 5m 2 Stage Mast Forklift 3 5 Ton 500mm Load Center - China

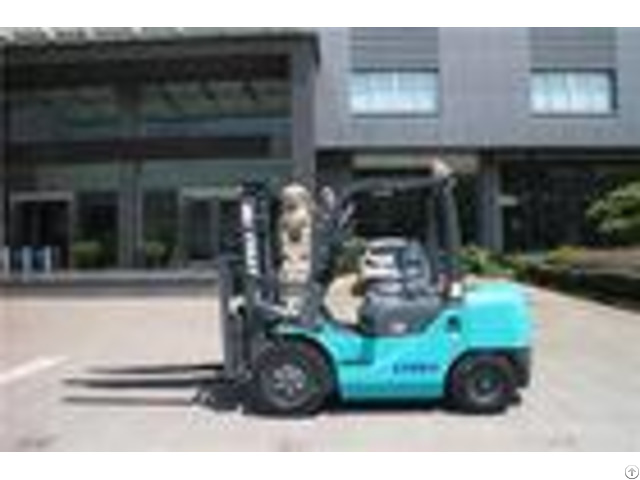

3.5 ton diesel hydraulic forklift truck with fork positioner 1670mm long fork Feature 1 - according to customer demand, customized 1670mm fork length.

2 - with fork positioner, so that the fork can move left and right 3 - 4.5m two stage mast, wide mast broadens visual field.

4 - side shift function 5 - automatic transmission, 6 - emergency stop switch, mechanical gear: one button-based control, which can effectively protect the electrical system.

The specification of 3.5 ton diesel forklift - - - - FD35T Technology Specification | Features | 1 | Manufacturer | | | LTMG | 2 | Model | Power shift T/M | FD35T | Manual shift T/M | FD35C | 3 | Load capacity | | kg | 3500 | 4 | Load center | | mm | 500 | 5 | Power unit | | | Diesel | 6 | Operator type | | | Driver/seat | 7 | Tire type | Front/rear | | Pneumatic | 8 | Wheel | Front/rear | | 2/2 | Dimension | 9 | Max.

lifting height | | mm | 4500 | 10 | Free lift | | mm | 150 | 11 | Fork size | L*W*T | mm | 1670*125*50 | 12 | Tilt range | Mast forward/backward | deg | 6/12 | 13 | Overall length(without fork) | | mm | 2760 | 14 | Total width | | mm | 1285 | 15 | Mast height (fork lowering) | | mm | 2075 | 16 | Overall height fork raised | With backrest | mm | 4250 | 17 | Height to head guard | | mm | 2140 | 18 | Turning raduis(outside) | | mm | 2495 | 19 | Front face of fork to front axle | | mm | 485 | 20 | Min.

right angle stacking aisle without load length&clearence | | mm | 2975 | Performance | 21 | Speed | Max Travelling full/no load | km/h | 18/19.5 | 22 | Lifting full/no load | mm/s | 450/500 | 23 | Lowering full/no load | mm/s | 450/420 | 24 | Max.

drawbar pull | Power shift T/M full/no load | kg | 2100/1000 | Manual shift T/M full/no load | kg | 2100/1000 | 25 | Gradeability at 1.6km/h | Power shift T/M full/no load | % | 18/20 | Manual shift T/M full/no load | % | 18/20 | Weight | 26 | Truck weight | | kg | 4780 | 27 | Weight distribution | Full load front/rear | kg | 7380/900 | 28 | No load front/rear | kg | 1820/2960 | Frame | 29 | Tires | Number | front/rear | 2/2 | 30 | Model | front axle | 28x9-15-12PR | 31 | rear axle | 6.50-10-10PR | 32 | Wheelbase | | mm | 1700 | 33 | Tread | Front/rear | mm | 1060/970 | 34 | Ground clearence | At lowest point(mast) | mm | 120 | Frame | mm | 135 | 35 | Brake | Service brake | | Hydraulic-foot pedal | Parking brake | | Mechanical-hand lever | Engine | 36 | Battery | Voltage/capacity | V/AH | 12/80 | 37 | Engine | Model | | ISUZU 4JG2 | Rated power | kw/rpm | 44.8/2450 | Rated torque | N.

m/rpm | 186/1800 | Number of cylinders | | 4 | Placement | L | 3.059 | Fuel tank capacity | L | 70 | 38 | Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 1-1 power shift T/M 2-2 manual shift T/M | 39 | Operating pressure | Hydraulic system pressure | kg/cm | 180 | - - - - After-sale service Nowadays more than 100 agents around the world can supply LTMA professional after-sale service.

All the products of LTMA supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please see to our website and products quality certificate.
