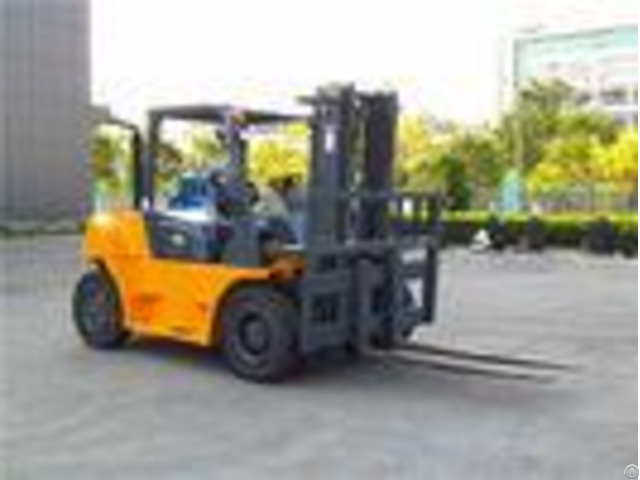

5000kg Rated Capacity Diesel Forklift Truck With Dual Front Tires - China

5000kg rated capacity diesel forklift truck with dual front tires 5000kg diesel forklift Feature 1 - New adjustable seat makes operator more comfortable.

2 - Work lights and warning lights make it safer and more efficient even in poor lighting conditions.

3 - New designed overhead guard protective device prevent the sudden accidents: The lifting system adopts buffering technology to reduce shock and vibration of the mast.

4 - Bigger and non-slip step: Bigger and non-slip step make the operating convenient and safe

5 - the full free 3-stage mast adopt German import channel With advanced welding technology, Increase the stability of ascension, durability and the width of front mast view, reduce the height of the instrument stand, expand the visibility of pallet fork tip and goods.

The Specification of 5000kg diesel forklift - - - -

Manufacturer | | | LTMG | Model | | Power shift T/M | FD50T | Load capacity | | kg | 5000 | Load center | | mm | 600 | Power unit | | | Diesel | Operator type | | | Driver/seat | Tire type | Front/rear | | Pnenumatic | Wheel | Front/rear | | 4/2 | Max.

lifting height | | mm | 3000 | Free lift | | mm | 205 | Fork size | L*W*T | mm | 1220*150*60 | Tilt range | Mast forward/backward | deg | 6/12 | Overall length(without fork) | | mm | 3455 | Total width | | mm | 1995 | Mast height (fork lowering) | | mm | 2500 | Overall height fork raised | With backrest | mm | 4420 | Height to head guard | | mm | 2450 | Turning raduis(outside) | | mm | 3250 | Front face of fork to front axle | | mm | 615 | Min.

right angle stacking aisle | without load length&clearence | mm | 5550 | Speed | Max Travelling full/no load | km/h | 26/30 | Lifting full/no load | mm/s | 500/550 | Lowering full/no load | mm/s | 450/500 | Max.

drawbar pull | full/no load | kg | 5500/2250 | Gradeability at 1.6km/h | full load | % | 37 | Max.

Gradeability | full/no load | % | 42/19 | Truck weight | | kg | 8050 | Weight distribution | Full load front/rear | kg | 11710/1340 | No load front/rear | kg | 4020/4030 | Tires | Number | front/rear | 4/2 | Model | front axle | 8.25x15-14PR | rear axle | 8.25x15-14PR | Wheelbase | | mm | 2250 | Tread | Front/rear | mm | 1470/1700 | Ground clearence | At lowest point(mast) | mm | 190 | Frame | mm | 230 | Brake | Service brake | | Brake booster Dynamic braking | Parking brake | | Mechanical-hand lever | Battery | Voltage/capacity | V/AH | 2x12V-80AH | Engine | Model | | ISUZU 6BG1 | Chaochai 6102BG | Rated power | PS(hp/rpm) | 112/2000 | 110/2500 | Rated torque | kg-m max.

(N.

m) | 42.5/1500 | 36/1650 | Number of cylinders | | 6 | 6 | Placement | L | 6.494 | 5.785 | Fuel tank capacity | L | 140 | Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 2-2 power shift T/M | Operating pressure | Hydraulic system pressure | kg/cm | 200 | - - - - After-sale service

Nowadays more than 100 agents around the world can supply LTMA professional after-sale service.

All the products of LTMA supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please see to our website and products quality certificate.
