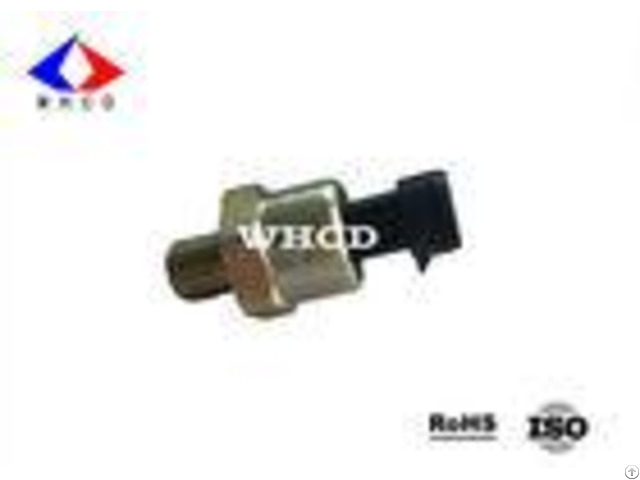

Auto Spare Parts Electronic Air Pressure Sensor For Truck Braking System - China

Auto Parts Electronic Air Pressure Sensor for Truck Braking System Product Description The connection mode of the electronic oil pressure sensor is exactly same as the traditional mechanical sensor.

It can replace the mechanical pressure sensor, directly connected with auto oil pressure indicator and low pressure alarm, indicating the oil pressure of the diesel engine and providing the low pressure alarm signal.

Compared with the traditional oil pressure sensor, the electronic oil pressure sensor has the advantages of no mechanical moving parts, high accuracy, high reliability, durability and so on.

The requirement of the sensor is very strict because of the bad working environment of automobiles.

In the design of the electronic oil pressure sensor, it is not only necessary to choose the pressure measuring device with high temperature resistance, corrosion resistance and high precision and the components with reliable performance and wide working temperature range, but also need to take anti-interference in the circuit to improve the reliability of the sensor.

Application Electronic Air Pressure Sensor is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of industrial process, hydraulic and pneumatic control project etc.

Technical Data - - - - Range | 0.1bar to 0.20bar | Accuracy | 1.0%FS; 0.5%FS | Linear | 0.02%FS | Reliability | 0.05%FS | Output | 0-5V ; | Input Voltage | 5VDC, 24(5-36V)DC | Operating Temperature | -40C~125C | Compensation Temperature | -10~65C(Standard compensation) | Over Pressure | 150%FS | Case material | Carbon steel, Stainless Steel, Alloy | Process Connection | 1/4NPT, 1/8-27NPT, M10, M12, M16, M18 (Optional) | - - - - Feature Electronic Oil Pressure Sensor combines the advantages of excellent anti-vibration performance, long service life, simple assembly, stable quality, wide range of operating temperature etc.

Instruction This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display.

When the pressure is lower than the set value, the low voltage switch is on and the alarm light is bright.

This product is simple in structure, convenient in use and reliable in performance.

Delivery Normally its 3-5 working days after payment cleared.

Payment 30% down-payment for production, the balance payment before shipment.

Packing A: Product packed in foam box with bubble bag.

B: According to clients requirement.

Shipment DHL, Fedex, TNT, UPS, Airfreight and Ocean freight.

Q & A - - - - Question | Answer | Whats your main products? | Oil pressure sensor, liquid level sensor, water temperature sensor, speed sensor | Where are you? | Wuhan city, Hubei Province, China | Do you accept OEM? | Yes, OEM is welcomed | Are you manufacturer or trading company? | We are manufacturer with export license.

| Do you provide sample? | Yes | Do you have any certificate? | Yes, we have ISO/TS16949, RoHS | Whats the MOQ? | Theres no limit for MOQ | - - - -
