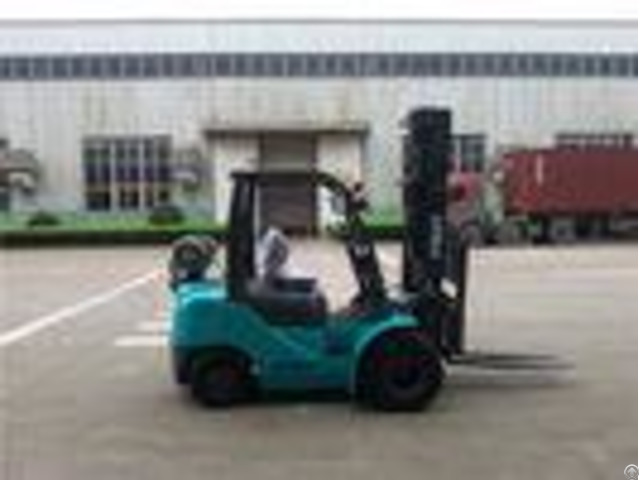

Automatic Transmission Lp Gas Forklift Unloading Truck Dual Front Tires - China

dual fuel forklift 2 ton LPG & gasoline forklift with dual front tires the Featureof forklift the standard configuration 1 - Nissank25 Engine 2 - Hydraulic / Automatic Transmission 3 - Duplex Mast Lifting Height 3000mm 4 - Pneumatic Tires 5 - 1070mm Fork Length Optional Equipments 1 - EPA Janpan engine Mitsubishi or PSI engine 2 - Lifting Height 3m-7m 3 - Full-free Duplex or Triplex Mast 4 - Side Shift, Solid Tires, Suspension Seat, fork positiner .

5 - Driver's Cabin, Customized Color, air-conditioner, etc.

6 - Attachments : paper roll clamp, bale clamp, rotating clamp ect.

The advantage of our forklift from detail 1 - The casting-type steering bridge, which is a single pouring type, is more stable and safer than the normal steering bridge, and the performance is more reliable.

2 - Can split embedded foot plate, installation and disassembly convenient, easier maintenance and maintenance.

3 - Using double air filter adopts high intake, effectively reduce the resistance and dust into the engineintake, improving the engine life.

The specification of 2 ton diesel forklift - - - - Features | Manufacturer | | | LTMA | Model | | Power shift T/M | FG20T | Manual shift T/M | FG20C | Load capacity | | kg | 2000 | Load center | | mm | 500 | Power unit | | | Gasoline/LPG | Operator type | | | Driver/seat | Tire type | Front/rear | | Pnenumatic | Wheel | Front/rear | | 2/2 | Dimension | Max.

lifting height | | mm | 6000 | Free lift | | mm | 160 | Fork size | L*W*T | mm | 1070*120*40 | Tilt range | Mast forward/backward | deg | 12/60 | Overall length(without fork) | | mm | 2460 | Total width | | mm | 1150 | Mast height (fork lowering) | | mm | 1995 | Overall height fork raised | With backrest | mm | 4030 | Height to head guard | | mm | 2120 | Turning raduis(outside) | | mm | 2170 | Front face of fork to front axle | | mm | 450 | Min.

right angle stacking aisle | without load length&clearence | mm | 2615 | Performance | Speed | Max Travelling full/no load | km/h | 17/19 | Lifting full/no load | mm/s | 550/580 | Lowering full/no load | mm/s | 450/550 | Max.

drawbar pull | Power shift T/M full/no load | kg | 1650/830 | Manual shift T/M full/no load | kg | 1700/830 | Gradeability at 1.6km/h | Power shift T/M full/no load | % | 25/20 | Manual shift T/M full/no load | % | 25/20 | Weight | Truck weight | | kg | 3240 | Weight distribution | Full load front/rear | kg | 4660/580 | No load front/rear | kg | 1470/1770 | Frame | Tires | Number | front/rear | 4 | Model | front axle | 7.00-12-12PR | rear axle | 6.00-9-10PR | Wheelbase | | mm | 1600 | Tread | Front/rear | mm | 970/970 | Ground clearence | At lowest point(mast) | mm | 110 | Frame | mm | 115 | Brake | Service brake | | Hydraulic-foot pedal | Parking brake | | Mechanical-hand lever | Engine | Battery | Voltage/capacity | V/AH | 12/60 | Engine | Model | | Nissan K21 | Rated power | PS(kw/rpm) | 47/2250(34.6/2250) | Rated torque | kg-m max.

(N.

m) | 15.7/1600(153/1600) | Number of cylinders | | 4 | Placement | L | 2.065 | Fuel tank capacity | L | 70 | Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 1-1 power shift T/M | 2-2 manual shift T/M | Operating pressure | Hydraulic system pressure | kg/cm | 180 | - - - - After sale-service Nowadays more than 100 agents around the world can supply LTMA professional after-sale service.

All the products of LTMA supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please see to our website and products quality certificate.

Company imformation LTMA Machinery Group co., ltd which was established in 2001, is a leading manufacturer of construction and materials equipment.

LTMA the forklift factory already have 15, 000 units forklifts annual production capacity with a 120, 000 square meters production base
