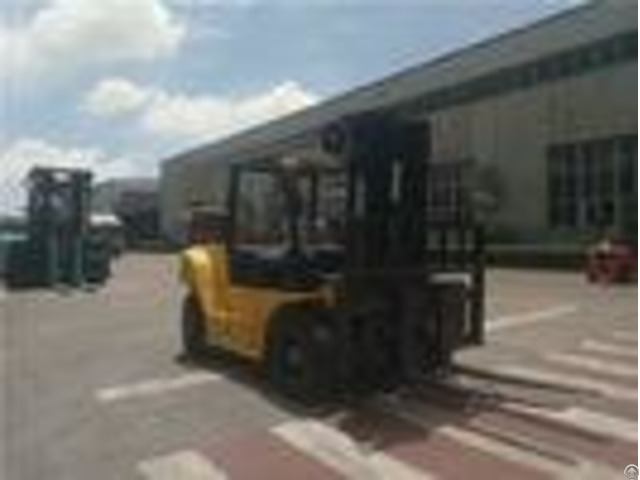

Chinese 8 Ton Diesel Forklift Truck With 4 5m Triplex Mast 2270mm Fork Length - China

Chinese 8 ton diesel forklift truck with 4.5m triplex mast 2270mm fork length forklift features 1 - forklift with 3 stage full free mast 4.5m lifting height 2 - with side shift 3 - Equipped with Chinese powerful and reliable engines with excellent environmental performance; Original imported Isuzu, Mitsubishi and Cummins engines are optional.

4 - LED working light, reverse beeper 6 - fork length: 2270mm, different fork length for your choose, The specification of 8 ton diesel forklift - - - - FD80T Technology Specificaiton | Features | 1 | Manufacturer | | | LTMA | 2 | Model | | | FD80T | 3 | Load capacity | | kg | 8000 | 4 | Load center | | mm | 600 | 5 | Power unit | | | Diesel | 6 | Operator type | | | Driver/seat | 7 | Tire type | Front/rear | | Pnenumatic | 8 | Wheel | Front/rear | | 4/2 | Dimension | 9 | Max.

lifting height | | mm | 4500 | 10 | Free lift | | mm | 205 | 11 | Fork size | L*W*T | mm | 2270*170*75 | 12 | Tilt range | Mast forward/backward | deg | 6/12 | 13 | Overall length(without fork) | | mm | 3740 | 14 | Total width | | mm | 1995 | 15 | Mast height (fork lowering) | | mm | 2625 | 16 | Overall height fork raised | With backrest | mm | 4545 | 17 | Height to head guard | | mm | 2450 | 18 | Turning raduis(outside) | | mm | 3550 | 19 | Front face of fork to front axle | | mm | 620 | 20 | Min.

right angle stacking aisle | pallet size : 11001100 add clearence | mm | 5770 | Performance | 21 | Speed | Max Travelling full/no load | km/h | 26/30 | 22 | Lifting full/no load | mm/s | 450/550 | 23 | Lowering full/no load | mm/s | 450/500 | 24 | Max.

drawbar pull | full/no load | kg | 5300/2150 | 25 | Gradeability at 1.6km/h | full load | % | 24 | | Max.

Gradeability | full/no load | % | 26/22 | Weight | 26 | Truck weight | | kg | 10450 | 27 | Weight distribution | Full load front/rear | kg | 16370/2080 | 28 | No load front/rear | kg | 4060/6390 | Frame | 29 | Tires | Number | front/rear | 4/2 | 30 | Model | front axle | 8.25x15-14PR | 31 | rear axle | 8.25x15-14PR | 32 | Wheelbase | | mm | 2400 | 33 | Tread | Front/rear | mm | 1470/1700 | 34 | Ground clearence | At lowest point(mast) | mm | 190 | Frame | mm | 230 | 35 | Brake | Service brake | | power bake | Parking brake | | Mechanical-hand lever | Engine | 36 | Battery | Voltage/capacity | V/AH | 2x12V-80AH | 37 | Engine | Model | | ISUZU 6BG1 | Rated power | PS | 112/2000 | Rated torque | kg-m | 42.5/1500 | Number of cylinders | | 6 | Placement | L | 6.494 | Fuel tank capacity | L | 140 | 38 | Transmission | shift stage(front/rear-type) | | 2-2 power shift T/M | 39 | Operating pressure | Hydraulic system pressure | kg/cm | 200 | - - - - Application Our 8 ton forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.

After-sale service Nowadays more than 60 agents around the world can supply LTMA professional after-sale service.

All the products of LTMA supplied with one year or 2000 workling hours (which occurs first) period quality warranty.

Detail clauses and policies please see to our website and products quality certificate.
