Commercial Indoor Lpg Gasoline Forklift Truck 4 Ton With Various Attachments - China
price: check with company for price

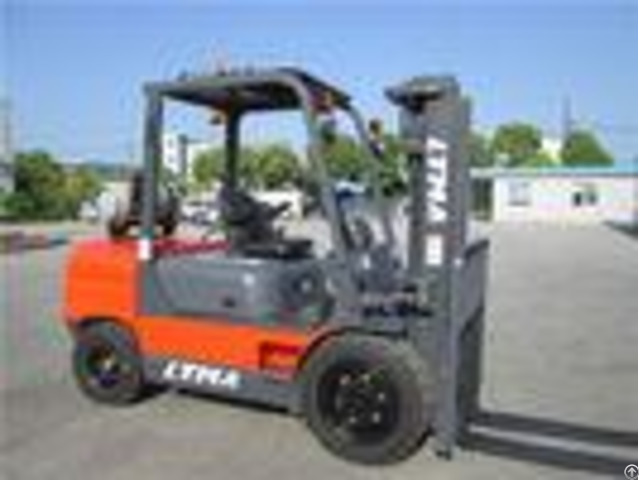

4 ton LPG forklift with various attachments
4 ton LPG forklift use japan automatic transmission, make your work very comfortable and efficient.
Hydraulic system is energy efficient which lower fuel consumption
Mast &lifting heightfor 4 ton LPG forkliftOur 4 ton LPG forklift used standard 3000mm lifting height duplex mast.
But we can also do different lifting height mast according customers' different working condition, eg: 3m duplex standard mast/ 4.5m duplex full free mast/ 6m triplex full free mast and others.
Our mast lifting height capacity from 3m to 7m for customers choosing.
VIP solution for 4 t LPG forkliftwe can do different lifting height mast from 3-7m according customers' different working condition.
we can offer all kinds attahement according customers' working condition, eg: solid tire/ sideshifter/ paper roll clamp/carton clamp/block clamp/blae clamp/positioner ect.
- - - -
Model | Unit | FG40T | Power type | | Gasoline/Liquefied gas/Natural gas | Rated capacity | kg | 4000 | Load center | mm | 500 | Operator type | | Drive in seat | Max.
lift height of mast with Load-backrest | mm | 4275 | Max.
lift height of fork(standard) | mm | 3000 | Height of mast (standard) | mm | 2150 | Free lift height(standard) | mm | 150 | Height of Load-backrest | mm | 1240 | Front wheel overhead | mm | 2105 | Length with fork | mm | 2895 | Front overhang | mm | 500 | Rear overhang | mm | 495 | Wheel base | mm | 1900 | The height of traction pin | mm | 330 | Min.
ground clearance | mm | 130 | Overall width | mm | 1410 | The distance between forks | mm | 1290/260 | Tread(front /rear) | mm | 1160/1065 | Min.
Turning radius(outside) | mm | 2700 | Min.
Turning radius(inside) | mm | 230 | Min.
Intersecting aisle | mm | 2685 | Mast tilt angle | deg | 6 / 12 | Fork size | mm | 1070X130X50 | Speeds | Max.
Drive speeds(with/without load) | km/h | 18/19 | Lifting speeds (with load) | mm/s | 350/380 | Lowering speeds(with /without full load) | mm/s | 350/400 | Max.
tractive force | KN | 20/18 | Max.
grade ability (with/without full load) | % | 15/18 | Total weight | kg | 4270 | Weight Distribution full load (front/ rear) | kg | 8380/930 | Weight Distribution zero load(front / rear) | kg | 2120/3190 | Quantity of wheels | | 2X / 2 | Type of tyres | | Penumatic tires | Tires | Front | | 250-15-16PR | Rear | | 6.00-10-10PR | Driving Brake | | hydraumatic pedal | Parking Brake | | Mechanical manual | Battery | V/AH | 12/80 | Engine (standard) | Model | | USA PSI | Rated output | kw/rpm | 57/2800 | Rated torque | N.
m/rpm | 198/1800 | No.
of cylinder | | 4-91X86 | Displacement | L | 2.237 | Fuel tank capacity | L | 60 | Number of speeds for transmission | | 1-1 Power shift transmission | / 2-2 Hand shift transmission | - - - - After-sale Service
LTMA always treat after-sale service important as the same as product quality.
LTMA grants our clients atwelve-month-period or 2000-hourswarranty for any machine purchased from us.
LTMAcan also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine.
With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
Company Contact:
- Posted By: LTMA Machinery Co.,Ltd.
- Phone: 86-592-5681408
- Address: UNIT 7039,7TH FLOOR MINNAN ANCIENT CULTURE A DEPARTMENT, NO. 350 CHANGLE ROAD, HULI DISTRICT,XIAMEN,, Xiamen , Fujian , China
- Email:
Published date: May 2, 2018
- Business Description: Long Teng Machinery Group (LTMG) was established in March, 1999 in Huli District, Xiamen, China, has two Joint-stock manufacturing factorys.
The wheel loader factory locate in Xiamen City and the forklift factory locate in Taizhou City, China.
Which are specialized in the manufacture, sale, service
