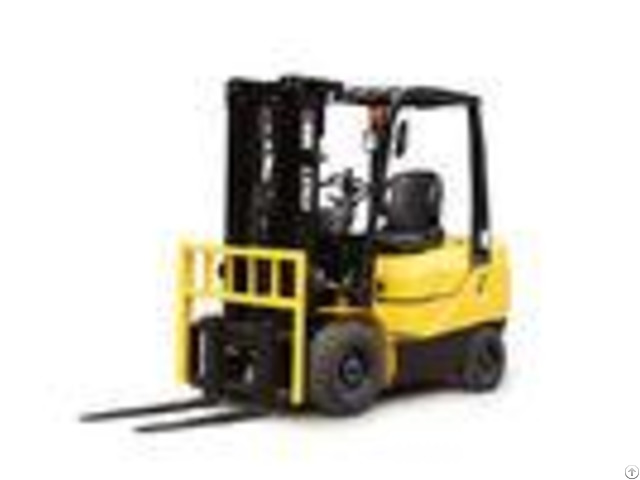

Diesel Forklift Truck 1 5 Ton With 3m Lifting Height Two Stage Mast - China

diesel forklift truck 1.5 ton with 3m lifting height two stage mast 1.5 ton diesel forklift feature 1 - High exhaust pipe: It can effectively prevent the ground dust from entering the intake system, improve the life of the filter core, and guarantee the engine performance.

2 - Air filter: the standard is equipped with large flow air filter, the air inlet flow is larger, the filtration efficiency is higher, and the service life is longer.

3 - The top shelf adopts the high strength one-piece punching roof to improve the safety, which can more effectively protect the driver's safety.

4 - Can split embedded foot plate, easy to install and remove, easier to maintain and maintain; The specification of 1.5 ton diesel forklift - - - - Specification | 1 | Manufacturer | | | | LTMG | 2 | Model | | | Power shift T/M | FD15T | 3 | Load capacity | | | kg | 1500 | 4 | Load center | | | mm | 500 | 5 | Power unit | | | | diesel | 6 | Operator type | | | | Driver/seat | 7 | Tire type | | Front/rear | | Pnenumatic | 8 | Wheel | | Front/rear | | 2/2 | Dimensions | 9 | Max.

lifting height (VM300) | | | mm | 3000 | 10 | Free lift (VM300) | | | mm | 155 | 11 | Fork size | | LWT | mm | 920*100*35 | 12 | Tilt range | | Mast forward/backward | deg | 6/12 | 13 | Overall length(without fork) | | | mm | 2245 | 14 | Total width | | | mm | 1070 | 15 | Mast height (VM300 fork lowering) | | | mm | 1995 | 16 | Overall height fork raised (VM300 with backrest) | | | mm | 4045 | 17 | Height to head guard | | | mm | 2060 | 18 | Turning raduis(outside) | | | mm | 2040 | 19 | Front face of fork to front axle | | | mm | 395 | 20 | Min.

right angle stacking aisle | | | mm | 2435 | Performance | 21 | Speed | Max Travelling | full load | km/h | 14 | no load | km/h | 14.5 | 22 | Lifting | full load | mm/s | 440 | no load | mm/s | 500 | 23 | Lowering | full load | mm/s | 370 | no load | mm/s | 530 | 24 | Max.

drawbar pull | | full/no load | Kg | 1130/690 | 25 | Gradeability at 1.6km/h | | full/no load | % | 21/18 | weights | 26 | Truck weight | | | kg | 2550 | 27 | Weight distribution | full load | front | kg | 3580 | rear | kg | 470 | 28 | no load | front | kg | 1110 | rear | kg | 1440 | Chassis&Wheels | 29 | front wheel | | | | 6.50-10-10PR | 30 | rear wheel | | | | 5.00-8-10PR | 31 | Wheelbase | | | mm | 1425 | 32 | Tread | front | | mm | 890 | rear | | mm | 900 | 33 | Ground clearence | At lowest point(mast) | | mm | 115 | Frame | | mm | 105 | 34 | Brake | Service brake | | | Hydraulic-foot pedal | Parking brake | | | Mechanical-hand lever | Drive Line | 35 | Battery | Voltage/capacity | | | 12/80 | 36 | Engine | Model | | | ISUZU C240 | Rated power | | kw/rpm | 34.3/2500 | Rated torque | | Nm/rpm | 138/1800 | Number of cylinders | | | 4 | Placement | | cc | 2369 | 37 | Fuel tank capacity | | | L | 50 | 38 | Transmission | Speed forward/backward | | | 1-1 power shift T/M | 39 | Operating pressure | Hydraulic system pressure | | Kg/cm | 180 | - - - - After-sale service Nowadays we have been sell more than 100countries.

All the products of LTMA supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please see to our website and products quality certificate.

FAQ 1 - What Certificate do you have? LTMA workshop meet with the ISO9001: 2008 Quality System.

All of our products with CE certificate.

Some of our products meets the EPA requirements.

LTMA never recruit Underage labor.

2 - Can you customize and design as the clients' requirement? LTMA will try its best to meet all kinds of clients' special requirements.

However, All the customizing and refit should be implemented safely and scientifically.

The colors can be painted as client's need.

3 - How long is the warranty of your products? Normally 1 year or 2000 working hours whichever occurs first.

Details to see the LTMA warranty policy for each model.

4 - Can you produce the products labeled with the client's brand? With the authorization of the brand, we can OEM for our clients.

5 - Whatpayment terms do you accept? Normally 30% T/T in advance as deposit, blance paid before shipment.

6 - Delivery time: Standard configuration products are always in stock.

The production period of Customizing products is 30days.
