Electronic Control 2 5 Ton Front End Wheel Loader Road Construction Equipment - China
price: check with company for price

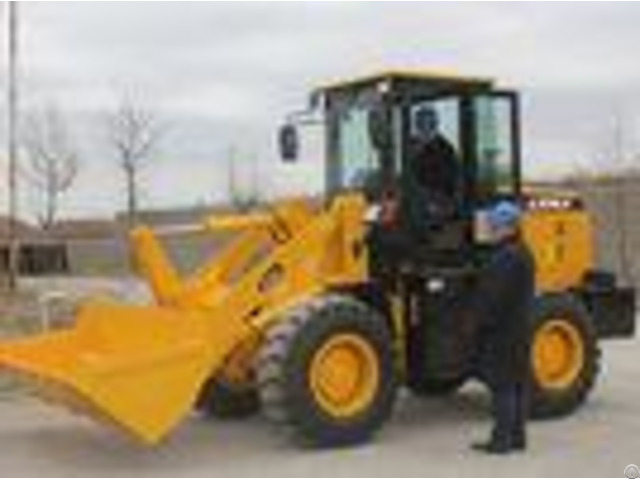

new technology 2.5 ton china small wheel loader with Optional air-conditioner Feature of 2.5 ton china small wheel loader 1 - Using direct injection diesel engine as power, with easy startup and low oil consumption 2 - Using special drive axle, with strong ability to overcome obstacle 3 - Using the central articulated frame and load-sensing hydraulic steering gear, with small turning radius and flexible turning, which applies to the operation in narrow space 4 - This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality 5 - Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
6 - Hydraulic mechanical transmission, can make full use of engine power 7 - Using four -wheel -drive, low wide-based off-road tires 8 - A single pipeline hydraulic brake system up for wheel brake shoe 9 - The pin with dustproof and the external grease fittings offer easy maintenance.
Cab can be dismantaled for large space.
Noise-isolation and vibration absorber meet all kinds od operation.
10 - The single-handle pilot control system(optional), electronic control The specifications ofnew technology 2.5 ton china small wheel loader with Optional air-conditioner - - - - performance | maximum tractive force | 54KN | maximum breakout force | 45.4KN | maximum grade ability | 28 | maximum dump height | 3300mm | maximum dump reach | 863mm | overall dimension (LWH) | 677022103100mm | Engine | model | Wheichai WP4.3 or YTO4105 | type | lnline water cooled, four stroke | No.
of cylinder-bore/stroke | 4105120mm | rated power | 85kw | maximum torque | 261 - N.
m | min fuel-consume ratio | 216g/kw.
h | Transmission system | torque converter | AX295C | gearbox mode | Countershaft power-shift | gear shift | 2 forward shift 2 reverse shift | maximum speed | 26km/h | Drive axles | main reducing mode | Circular Arc Bevel gear, single stage | decelerating mode | Single stage planetary type | wheel base (mm) | 2580mm | wheel tread | 1620mm | ground clearance | 310mm | system working pressure | 16MPa | Hydraulic system | boom lifting time | 4.8s0.2s | total time | 9.2s0.5s | function of leveling automatically | yes | service brake | air assist disc brake on 4 wheels | Brake system | parking brake | flexible shaft operated external drum | type specification | 16/1720 | Tyre | - - - - 2.5 ton china small wheel loader After-sale service Nowadays we have been sell more than 100 countries.
All the products of LTMA supplied with one year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
Detail clauses and policies please see to our website and product's quality certificate.
Company Contact:
- Posted By: LTMA Machinery Co.,Ltd.
- Phone: 86-592-5681408
- Address: UNIT 7039,7TH FLOOR MINNAN ANCIENT CULTURE A DEPARTMENT, NO. 350 CHANGLE ROAD, HULI DISTRICT,XIAMEN,, Xiamen , Fujian , China
- Email:
Published date: May 2, 2018
- Business Description: Long Teng Machinery Group (LTMG) was established in March, 1999 in Huli District, Xiamen, China, has two Joint-stock manufacturing factorys.
The wheel loader factory locate in Xiamen City and the forklift factory locate in Taizhou City, China.
Which are specialized in the manufacture, sale, service
