Epa Approved Gas Forklift Truck Material Moving Equipment For Distribution Center - China
price: check with company for price
Thefeatures of EPA approved forklift lpg gas forklift 3 ton 1 - Equipped with Original imported Nissan powerful and reliable engines with excellent environmental performance; Using American IMPCO gas system which is more reliable.
2 - Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
3 - An all aluminum radiator core provides constant engine coolant temperature control through faster heat dissipation.
Combination engine coolant and transmission fluid radiator is designed for maximum air flow passing through the counterweight.
The specification of EPA approved forklift lpg gas forklift 3 ton - - - - Manufacturer | | | LTMA | Model | | Power shift T/M | FG30T | Manual shift T/M | FG30C | Load capacity | | kg | 3000 | Load center | | mm | 500 | Power unit | | | Gasoline | Operator type | | | Driver/seat | Tire type | Front/rear | | Pneumatic | Wheel | Front/rear | | 2/2 | Max.
lifting height | | mm | 3000 | Free lift | | mm | 150 | Fork size | L*W*T | mm | 1070*125*45 | Tilt range | Mast forward/backward | deg | 6/12 | Overall length(without fork) | | mm | 2660 | Total width | | mm | 1225 | Mast height (fork lowering) | | mm | 2075 | Overall height fork raised | With backrest | mm | 4250 | Height to head guard | | mm | 2140 | Turning radius(outside) | | mm | 2400 | Front face of fork to front axle | | mm | 480 | Min.
right angle stacking aisle | without load length&clearance | mm | 2880 | Speed | Max Travelling full/no load | km/h | 18/19.5 | Lifting full/no load | mm/s | 450/500 | Lowering full/no load | mm/s | 450/450 | Max.
drawbar pull | Power shift T/M full/no load | kg | 1300/1000 | Manual shift T/M full/no load | kg | 1350/1000 | Gradeability at 1.6km/h | Power shift T/M full/no load | % | 17/20 | Manual shift T/M full/no load | % | 17/20 | Truck weight | | kg | 4220 | Weight distribution | Full load front/rear | kg | 6390/830 | No load front/rear | kg | 1650/2570 | Tires | Number | front/rear | 2/2 | Model | front axle | 28x9-15-12PR | rear axle | 6.50-10-10PR | Wheelbase | | mm | 1700 | Tread | Front/rear | mm | 1000/970 | Ground clearance | At lowest point(mast) | mm | 120 | Frame | mm | 135 | Brake | Service brake | | Hydraulic-foot pedal | Parking brake | | Mechanical-hand lever | Battery | Voltage/capacity | V/AH | 12/60 | Engine | Model | | Nissan K21 | Rated power | PS(kw/rpm) | 47/2250(34.6/2250) | Rated torque | kg-m max.
(N.

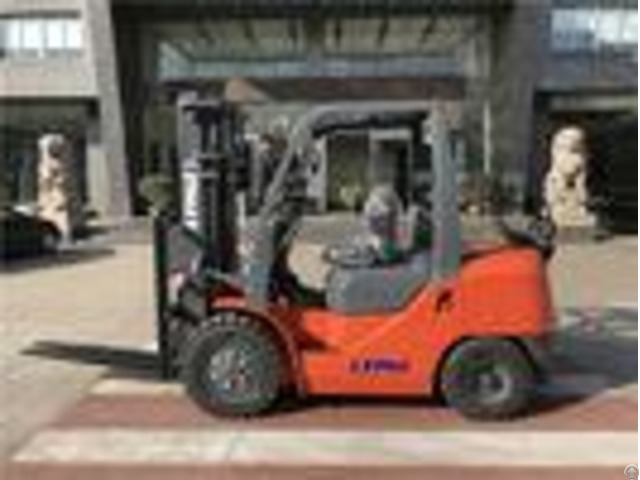

m) | 15.7/1600(153/1600) | Number of cylinders | | 4 | Placement | L | 2.065 | Fuel tank capacity | L | 70 | Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 1-1 power shift T/M 2-2 power shift T/M | Operating pressure | Hydraulic system pressure | kg/cm | 180 | - - - - the detail photo of forklift Company imformation LTMA Machinery Group co., ltd which was established in 2001, is a leading manufacturer of construction and materials equipment.
LTMA the forklift factory already have 15, 000 units forklifts annual production capacity with a 120, 000 square meters production base.
After-sale service Nowadays more than 100 agents around the world can supply LTMA professional after-sale service.
All the products of LTMA supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and products quality certificate.
Company Contact:
- Posted By: LTMA Machinery Co.,Ltd.
- Phone: 86-592-5681408
- Address: UNIT 7039,7TH FLOOR MINNAN ANCIENT CULTURE A DEPARTMENT, NO. 350 CHANGLE ROAD, HULI DISTRICT,XIAMEN,, Xiamen , Fujian , China
- Email:
Published date: May 2, 2018
- Business Description: Long Teng Machinery Group (LTMG) was established in March, 1999 in Huli District, Xiamen, China, has two Joint-stock manufacturing factorys.
The wheel loader factory locate in Xiamen City and the forklift factory locate in Taizhou City, China.
Which are specialized in the manufacture, sale, service
