Factory Workshop Diesel Forklift Truck 15 Ton Capacity 1600mm Fork Length - China

price: check with company for price

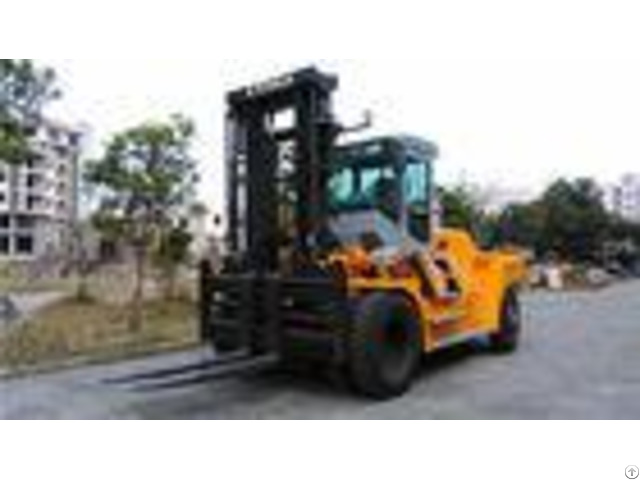

Factory Workshop Diesel Forklift Truck 15 Ton Capacity 1600mm Fork Length

Products Photos Catalog Factory Workshop Photos Catalog

15 ton diesel forklift truck with 1600mm fork length and automatic transmission Feature 1 - Steering axle: adopt full-hydraulic steering gear with transverse cylinder, which helps ensure flexible steering and high reliability 2 - The gearbox and torque converter are of reliable quality and stable performance.

3 - The transmission mode is hydraulic transmission (flexible transmission), being stable and convenient to operate.

4 - Brake system is famous brand product, with reliable brake performance.

The specification of 15 ton forklift - - - - specification | General | Manufacture | | LTMA | Model | | FD150T | Power type | | Diesel | Rated capacity | Kg | 15000 | Load center | mm | 600 | Dimensions | Lift height | mm | 3000 | Free lift height | mm | 100 | Fork size | mm | 1600*180*100 | Fork distance | Min.

/Max.

| mm | 680/1700 | Mast tilt angle | Front/Reverse | deg | 8/12 | Front overhang | mm | 1050 | Overall dimensions | Length to face of fork | mm | 6950 | Overall width | mm | 2550 | Mast lowered height | mm | 3240 | Mast extended height | mm | 4750 | Overhead guard height | mm | 2700 | Turning radius | mm | 5400 | Min.

right angle aisle width | mm | 3712 | Performance | no load/full load | travel spead | Km/h | 28/23 | Lifting spead | mm/sc | 250/220 | Max.

grade abnlity | % | 15 | Max.

Pull force(full load) | KN | 110 | Self weight | kg | 20000 | Chassis | Tyres | Front | | 4*12.00-24*18PR | Rear | | 2*10.00-20*16PR | Tread | Front | mm | 1850 | Rear | mm | 1820 | Wheelbase | mm | 3200 | Min.

Ground clearance( no load/full load) | Mast | mm | 250/240 | Frame | mm | 250/240 | Drive unit & control | Battery | V/AH | 24/100*2 | Engine | Model | | YC6B125-T11 or 6BTAA5.9-C190 | Manufacture | | YUCHAI OR CUMMINS | Rated output | Kw/rpm | 92/2300 OR 142/2400 | Rated torque | N.

m/rpm | 450/1300-1400 | NO.

of cylinder | | 6 | Bore*stroke | mm | 108*125 | Displacement | L | 6.871 | Fuel tank capacity | L | 300 | Transmissions | Type | | Hydraulic | Shift Front/rear | | 2/1 | - - - -


Company Contact:


  • Phone: 86-592-5681408

  • Address: UNIT 7039,7TH FLOOR MINNAN ANCIENT CULTURE A DEPARTMENT, NO. 350 CHANGLE ROAD, HULI DISTRICT,XIAMEN,, Xiamen , Fujian , China

  • Email: Email


Published date: May 2, 2018

  • Business Description: Long Teng Machinery Group (LTMG) was established in March, 1999 in Huli District, Xiamen, China, has two Joint-stock manufacturing factorys.

    The wheel loader factory locate in Xiamen City and the forklift factory locate in Taizhou City, China.

    Which are specialized in the manufacture, sale, service
