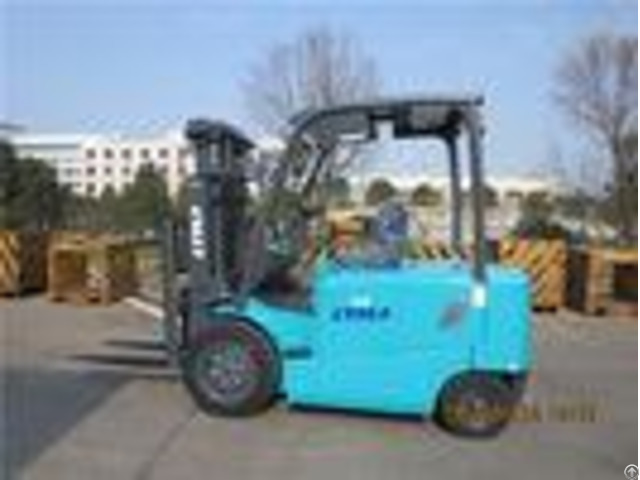

Fb30 3 Ton Four Wheel Electric Forklift Truck For Loading And Unloading Cargo - China

FB30 3 ton Four Wheel Electric battery operated Forklift truck with AC motor The 3 ton electric forklift feature 1 - Equipped with original imported American Curtis electric control system; High voltage and large capacity battery can supply the forklift with strong power.

2 - This electric forklift truck not only has excellent operability, comfortable and safe, and reliable performance with waterproof.

3 - It won't be emissions, and does not produce noise.

4 - All the parts of reasonable design, combined with a series of designed to increase productivity power regeneration function, to achieve the goal of control power consumption.

5 - Redesigned hydraulic control levers positioned next to seat to make operators feel comfortable.

The 3 ton electric forklift specification - - - - Features | 1 | Manufacturer | | | LTMA | 2 | Model | | | FB30 | 3 | Load capacity | | kg | 3000 | 4 | Load center | | mm | 500 | 5 | Power unit | Battery, diesel, gasoline | | Battery | 6 | Operator type | | | Driver/seat | 7 | Tire type | Front/rear | | Air tires | 8 | Wheel | Number Front/rear | | 2X/2 | Dimension | 9 | Max.

lifting height | | mm | 3000 | 10 | Free lift | | mm | 165 | 11 | Fork size | L*W*T | mm | 1070*125*45 | 12 | Tilt range | Mast forward/backward | deg | 6-12 | 13 | Overall length(without fork) | | mm | 2510 | 14 | Total width | | mm | 1225 | 15 | Mast height (fork lowering) | | mm | 2075 | 16 | Overall height fork raised | With backrest | mm | 4260 | 17 | Height to head guard | | mm | 2190 | 18 | Turning raduis(outside) | | mm | 2140 | 19 | Front face of fork to front axle | | mm | 485 | 20 | Min.

right angle stacking aisle | not add load length&clearence | mm | 2080 | Performance | 21 | Speed | Max Travelling full/no load | km/h | 13.5/15 | 22 | Lifting full load | mm/s | 290 | 23 | Lifting no load | mm/s | 490 | 25 | Gradeability | full load | % | 12.5 | Weight | 26 | Truck weight | | kg | 4660 | 27 | Weight distribution | Full load front/rear | kg | 3635/555 | 28 | No load front/rear | kg | 1885/2775 | Frame | 29 | Tires | Number | front/rear | 2/2 | 30 | Model | front axle | 28x9-15-12PR | 31 | rear axle | 18x7-8-14PR | 32 | Wheelbase | | mm | 1600 | 33 | Tread | Front/rear | mm | 1000/950 | 34 | Ground clearence | At lowest point(mast) | mm | 140 | Frame | mm | 120 | 35 | Brake | Service brake | | Hydraulic-foot peda | Parking brake | | Mechanical lever | Electric motor and controller | 36 | Battery | Voltage/capacity | V/AH/5hr | 72V-480 | 37 | Weight (standard) | kg | 1220 | 38 | Electric motor | Driving motor | kw/60min | 11 | 39 | Hydraulic driving motor | kw/5min | 10 | 40 | Control type | Electric driving | AC | 41 | Operating pressure | Hydraulic system pressure | kg/cm | 175 | - - - - After-sale service LTMA grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.

LTMA can also help clients coordinate with trained service personal to provide you detailed and extensive knowledge about your specific machine.

With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
