Fzb05 Self Lubricating Bearing Fz 5 Oilless Copper Bushings - China

Packing and delivery details:

single products in carton, totally in wooden box with water-proof plastic and on pallet.

Samples deliveried by air and batch orders deliveried by sea.

Specifications:

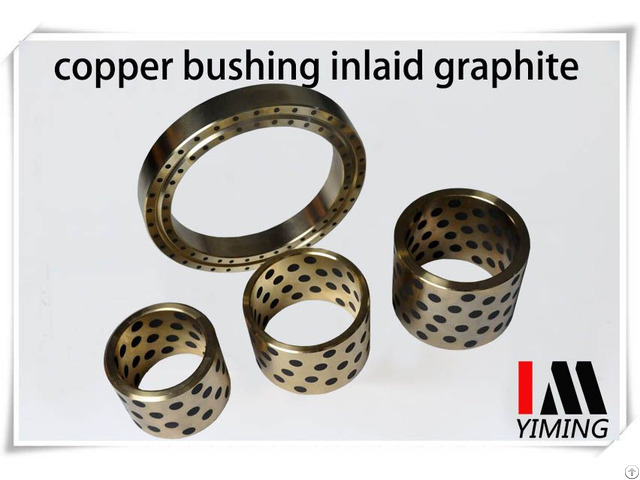

FZB05 self-lubricating bearing structure is based on high-strength copper alloy as the matrix, which are distributed on a number of through-hole or blind hole, hole filled with solid lubricant, while bearing friction layer is also coated with a surface to help run the solid lubricating film.

Material code(based) Loading ability (MPa) Limit PV value Spare parts (shaft) hardness Application range

Dynamic load Static load Running speed

0.4 0.1 0.05 0.01

FZB051 125 55(110) 1.25(8.4) 1.1(5.4) 1.1(3.5) 0.55(1.05) 220 Higher speed, lower load, impact resistance

FZB052 180 70(140) 1.2(8.4) 1(5.4) 1(4) 0.7(1.5) 220 High load, corrosive environment

FZB053 350 80(160) 1.18(8.4) 0.97(5.4) 0.9(4) 0.7(1.6) 300 High load, corrosive not serious environment

FZB054 180 70(140) 1.2(8.4) 1.03(5.4) 0.96(4) 0.75(1.4) 300 High load, high temp., corrosive environment

The product has excellent friction, wear properties, low coefficient of friction, high carrying capacity.

In particular, FZB053 used in the matrix material is developed, screening of special formula copper alloy, its yield strength of 520MPa, the hardness of 200HB, with high load-bearing characteristics, under heavy load, other copper alloy material can not meet, It can meet the use, and the friction performance is also more prominent.

Dimensions according to customer required：for bushings, 8mm minimum inside diameter and 1500mm maximum outside diameter.

For plates, 2000mm length maximum and 600mm width maximum and thickness 100mm maximum.

Possible versions: Bushings, flange bushing, gasket, slider, special products.

Delivery time: quickly delivery time, 10-15days standard prducts and 20-30days specificed.

Application:

The product has been widely used in hydro-generators, wind turbines, hydraulic gates, turbine generators, petroleum machinery, metallurgical equipment, lifting and transportation industries.

Products range:

The major products: copper alloy bushings, cooper alloy plate, Inlaid graphite copper bushings, Steel and copper bimetal bushings, bimetal self-lubricating bearings, copper and steel composite material plate, Steel based copper plastic materials, DU oil-free bushings, DX Boundary lubrication material bushings, self-lubricating joint bearings, bearing steel sleeve bushings, mechanical parts etc.

Our sales people give highest consideration to any enquiry, and are happy to receive comments or questions for special application or OEM products.

We possess a complete production and service system including everything from casting, metal machining, packing and delivery to quality inspection and specialized marketing is avaiable.

We sincerely hope to enter into business relations with you, and offering you products with high quality.
