High Lift Hydraulic Hand Pallet Truck Counterbalance Electric Stacker Forklift - China
price: check with company for price

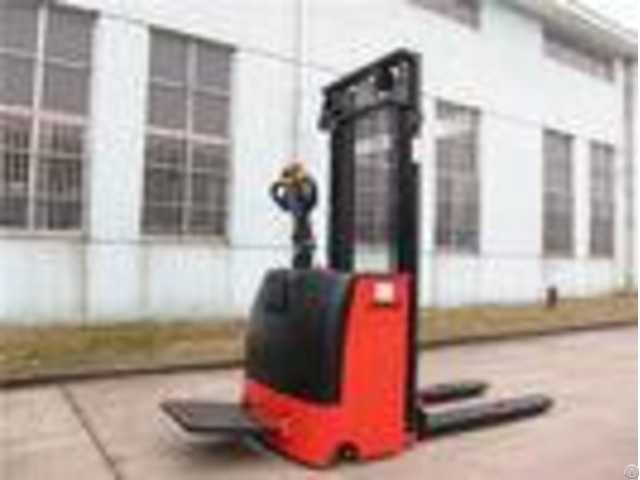

2 ton electric powered pallet stacker with german motor 1 - Exchange drive system is the vehicle to respond quickly and accurately control, smooth operation.
Battery service life long.
2 - Special design communication driver, provide a strong power.
And no carbon brush, basic need not maintain, greatly reducing maintenance cost.
3 - The first-class hydraulic pressure station, low noise, small vibration, good sealing, drop speed automatic adjustment with load, ensure lifting down stable and reliable.
4 - The latest communication controller, reliable quality, excellent performance, has the regenerative braking, reverse braking and DuoZhong parameters adjustable function, can make the vehicle performance to the movement of different states the best state.
5 - The longer control handle, and greatly reduce the energy you need to manipulate the car, lighter and manipulation.
6 - Slow speed function, will handle for nearly vertical state, form speed automatic reduce, facilitate in the narrow space achieve precise in homework.
7 - Top-Quality Control SystemCURTISFrom USA.
- - - - | | ERC200 | Type | | Narrow legs | Mast type | | 2-Stage STD | Load capacity | kg | 2000 | Load center | mm | 600 | Wheel base | mm | 1325 | Operating type | | Walkle/Stand on | Wheels | Wheel type | | PU | Wheel quantity driving wheel/Balance wheel/Bearing wheel | | 2001-2-4 | Demension | Standard lift height | mm | 3000 | Lowered fork height | mm | 86 | Fork size(length/width/thickne ss) | mm | 1150(1200)/180/60 | Overall length | mm | 1970/2390 | Overall width | mm | 1050 | Outside with between legs | mm | 570/600/650/685 | Inside with between legs | mm | 180/230/280/315 | Min.
turning radius | mm | 1630/1990 | Min.
aisle width for pallets 8001200 | mm | 2180/2580 | Min.
aisle width for pallets 10001200 | mm | 2210/2600 | Min.
groud clearance | mm | 30 | Performance | Travel speed, laden/unladen | km/h | 5/5.5 | Lift speed, laden/unladen | mm/s | 80/120 | Travel speed, laden/unladen | mm/s | 80/90 | Gradeability, laden/unladen | % | 5/8 | Electric configuration | Drive motor /Lift motor/Steering motor | kw | AC1.5/DC3.0/DC0.15 | Battery voltage | V | 24 | Battery capacity | Ah | 280 | Brake | | Electromagnetic/Regenerat ive | Controller | | CURTIS | Weight | Battery weight | kg | 235 | Service weight with battery | kg | 1280 | - - - - After-sale service Nowadays we have been sell more than 60 countries.
All the products of LTMA supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and products quality certificate.
