High Quality Customisable Metso Head Bushings - China

Origin: Henan, China (Mainland)

Brand: Dashan

Model Number: Various

Type: Bushings

Machine Type: Crusher

Certification: ISO

Material: Bronze, brass

Processing Type: Casting

Use: Ore Mining

Advantage: Wear resistant

Specification: Full sizes and customized

Shipping Methods : Courier, Air or Sea

Lead time: According to required time

Drawing: Yes

Lubricant: Oiling

Processing type: Centrifugal casting

Price: Factory price

Capacity: OEM or Making by your drawing

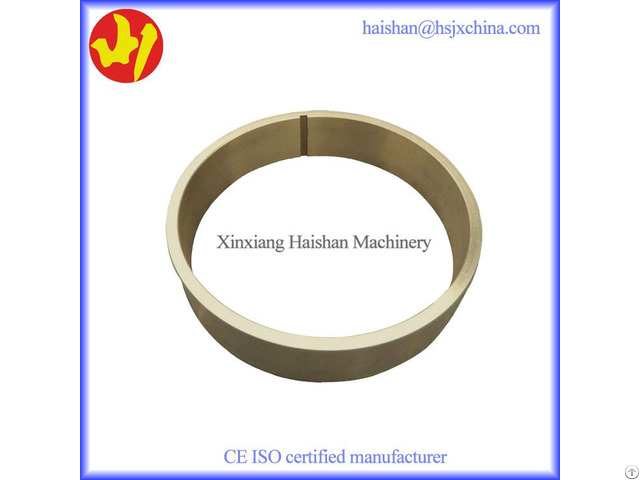

Metso bushings

An introduction for the cone crusher bushings

The function of cone crusher bushings is to slide bearings, which have an irreplaceable role in the cone crusher.

Cone Crusher Middle of a large gear assembly is cone crusher bushing, moving cone axis interpolation, the smaller gap of about 3mm, under a larger gap of about 8mm, can be measured with a thick fuse assembly, socket liner and wear of moving cone sphere will affect the gap, moving cone trajectory by decision.

Removing cone crusher bushings

Outer copper bushing can be pulled by using the homemade device which the demolition of the need have been removed to check the size of the hole in the creel.

Copper rod in the sleeve at the centre or disc device can be split by using a hammer.

Installing cone crusher bushings

When installing the countershaft bushing, use dry ice shrink for at least two hours.

After installation is completed, you need to install the top screws, screw fastening needs painted with a professional plastic.
