Npt 1 4 Color Zinc Plated Automotive Oil Pressure Sensor For Truck Instruments - China

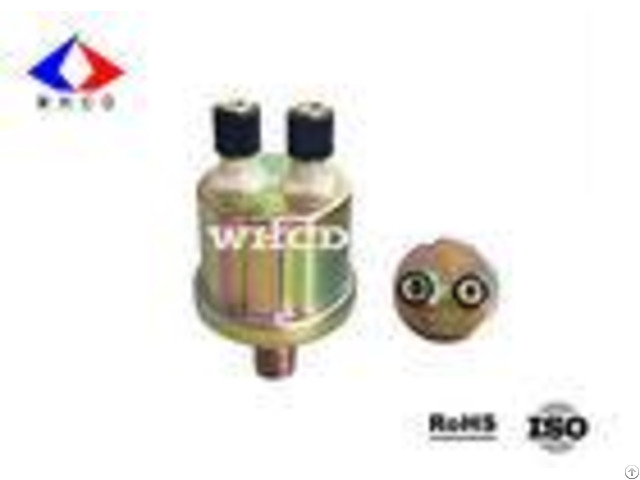

Color Zinc Plated Automotive Oil Pressure Sensor For Truck Instruments Product Description The oil pressure sensor is installed on the main oil channel of the engine.

When the engine runs, the pressure measuring device detects the pressure of oil and transfers the pressure signal to the electrical signal to the signal processing circuit.

The pressure signal is connected to the oil pressure meter.

When the voltage is below the alarm voltage, the alarm circuit output the signal and pass through, alarm light is on.

Application It is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of industrial process, hydraulic and pneumatic control project, etc.

Technical Data # Operating voltage: 6~24V # Conducting power: < 5W # Operating temperature: -25 ~120(120 MAX 1H) # Measuring range: 0~5Bar or 0~10Bar # Alarm: 0.8Bar or 1.4Bar # Output signal: Standard resistance value: 10~184 # Thread fitting: NPT1/4, NPT1/8, M10, M10X1 or customized as requires.

# IP rank: IP66 Feature It combines the advantages of excellent anti-vibration performance, long service life, simple assembly, stable quality, wide range of operating temperature, etc.

Cautions 1 - this product needs a wrench to be clamped to the six side nut and tighten the thread.

The maximum tightening torque is 17N.m. 2 - the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.

Our Service # # Our quotation is always valid for you if there is no world market unrest.

# Receiving your new inquiry, the details of products & the best price will be provided you asap.

# 7 days replacement and 12 months repair free of charge for quality problem.

# Port: Shanghai.

# Payment: T/T.

# OEM available # Delivery time is 7-10 working days.

# All goods will be fully checked by our QC.

# Package: The goods will be put into the packing box with instructions and certificate of quality first.

Then we pack them into the box with polystyrene foam avoiding the damage to the products.

# Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.

Q & A - - - - Question | Answer | Whats your main products? | oil pressure sensor, liquid level sensor, water temperature sensor, speed sensor | Where are you? | Wuhan city, Hubei Province, China | Do you accept OEM? | Yes, OEM is welcomed | Are you manufacturer or trading company? | We are manufacturer with export license.

| Do you provide sample? | Yes | Do you have any certificate? | Yes, we have ISO/TS16949, RoHS | Whats the MOQ? | Theres no limit for MOQ | - - - -
