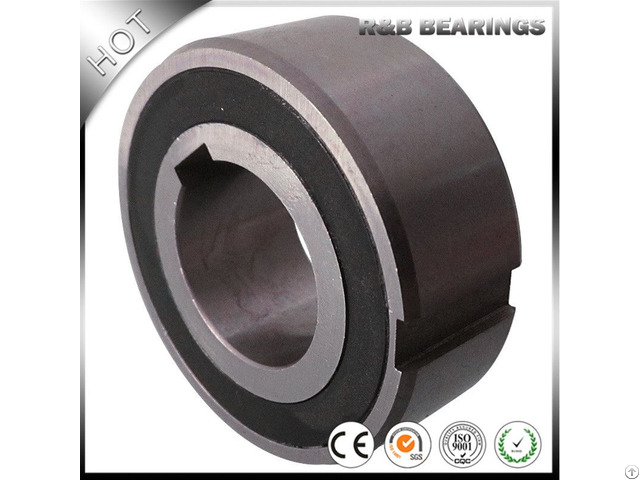

One Way Sprag Freewheel Clutch Bearing Csk25 2rspp - China

Description 1 - Type CSK is a sprag type freewheel integrated into a 62 series ball bearing (except sizes 8 and 40).

It is bearing supported, delivered grease lubricated and protected against dust of more than 0, 3 mm.

The use of additional "nylos" type seals is recommended especially when the working temperature exceeds 50°C.

Oil bath lubrication is also possible.

All the CSK versions are equipped with "formchromed" sprags.

This process increases several times the overrunning life time.

Torque transmission is ensured by a press fit assembly into a rigid steel housing with N6 tolerance, and onto a shaft with n6 tolerance.

For this reason, the initial bearing radial clearance is set at C5.

Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C.

CSK.

2RS is 5 mm wider but is equiped with lip seals to be water splash resistant.

2 - Types CSK.

P and CSK.

PP are sprag type freewheels integrated into 62 - series ball bearings (except size 40).

They are bearing supported, delivered grease lubricated and protected against dust of more than 0, 3 mm.

The use of additional "nylos" type seals is recommended especially when the working temperature exceeds 50°C.

Oil bath lubrication is also possible.

In addition to the basic CSK model, type CSK.

P features a keyway on the inner race.

For this reason it can be keyed to a shaft to k6 tolerance.

The outer race must still be pressed into a rigid steel housing to N6 tolerance.

CSK.

PP features a keyway on both the inner and outer race.

The recommended mounting tolerances are h6 on the shaft and H6 in a rigid housing.

Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C.

Specification Type Size Bearing series Bearing loads Weight Dragtorque

dynamic static

CSK (KK) d TKN1) nmax D L C C0 TR

[mm] [Nm] [min-1] [mm] [mm] [kN] [kN] [kg] [Ncm]

8* - 2.5 15000 22 9 3.28 0.86 0.015 0.5

12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7

15 6202 17 8400 35 11 7.4 3.42 0.06 0.9

17 6203 30 7350 40 12 7.9 3.8 0.07 1.1

20 6204 50 6000 47 14 9.4 4.46 0.11 1.3

25 6205 85 5200 52 15 10.7 5.46 0.14 2

30 6206 138 4200 62 16 11.7 6.45 0.21 4.4

35 6207 175 3600 72 17 12.6 7.28 0.3 5.8

40 - 325 3000 80 22 15.54 12.25 0.5 7

CSK.

2RS 8** 2.5 15000 22 9 3.28 0.86 0.015 0.8

12 - 9.3 10000 32 14 6.1 2.77 0.05 3

15 17 8400 35 16 7.4 3.42 0.07 4

17 30 7350 40 17 7.9 3.8 0.09 5.6

20 50 6000 47 19 9.4 4.46 0.145 6

25 85 5200 52 20 10.7 5.46 0.175 6

30 138 4200 62 21 11.7 6.45 0.27 7.5

35 175 3600 72 22 12.6 7.28 0.4 8.2

40 - 325 3000 80 27 15.54 12.25 0.6 10 Skype: lixia.
