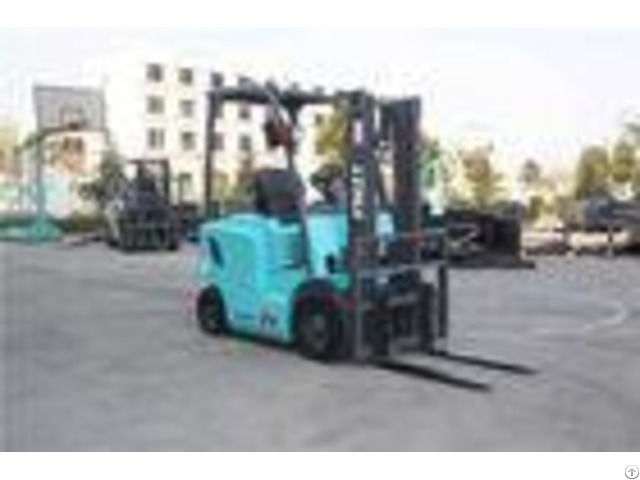

Portable Electric Forklift Truck 1 5 Ton With 48v Battery Work In Refrigeration Storage - China

small electric forklift 1.5 ton with 48V battery work in refrigeration storage 1.5 ton electric forklift feature 1 - The car comes standard with the function for preventing water infiltration through cracks vehicle body, then it can avoid the electronic pedal to be hurt by the water flow in the operating room.

Strengthen waterproof design makes more security to the operator.

2 - At the rear of the forklift truck equipped with a rear combination lamp, includes tail lights, brake lights, backup lights and flash warning light function, which greatly improved the visibility at the back of the forklift truck.

3 - Economical, environmentally friendly it won't be emissions, and does not produce noise.

In the running process does not produce carbon monoxide, carbon dioxide, nitrogen oxide or other causes of global warming and air pollution harmful gases, 4 - Equipped with original imported American Curtis electric control system; High voltage and large capacity battery can supply the forklift with strong power; DC or AC motors are optional according to customers requirements.

The specification of 1.5 ton forklift - - - - Features | 1 | Manufacturer | | | LTMA | 2 | Model | | | FB15 | 3 | Load capacity | | kg | 1500 | 4 | Load center | | mm | 500 | 5 | Power unit | Battery, diesel, gasoline | Battery | 6 | Operator type | | | Driver/seat | 7 | Tire type | Front/rear | | Air tires | 8 | Wheel | Number Front/rear | 2X/2 | Dimension | 9 | Max.

lifting height | | mm | 3000 | 10 | Free lift | | mm | 155 | 11 | Fork size | L*W*T | mm | 920*100*35 | 12 | Tilt range | Mast forward/backward | deg | 6-12 | 13 | Overall length(without fork) | | mm | 1995 | 14 | Total width | | mm | 1070 | 15 | Mast height (fork lowering) | | mm | 1995 | 16 | Overall height fork raised | With backrest | mm | 4030 | 17 | Height to head guard | | mm | 2100 | 18 | Turning raduis(outside) | | mm | 1780 | 19 | Front face of fork to front axle | | mm | 375 | 20 | Min.

right angle stacking aisle | not add load length&clearence | mm | 1770 | Performance | 21 | Speed | Max Travelling full/no load | km/h | 14/16 | 22 | Lifting full load | mm/s | 350 | 23 | Lifting no load | mm/s | 530 | 25 | Gradeability | full load | % | 15 | Weight | 26 | Truck weight | | kg | 2690 | 27 | Weight distribution | Full load front/rear | kg | 3635/555 | 28 | No load front/rear | kg | 1110/1580 | Frame | 29 | Tires | Number | front/rear | 2/2 | 30 | Model | front axle | 6.00-9-10-10PR | 31 | rear axle | 16x6-8-10PR | 32 | Wheelbase | | mm | 1250 | 33 | Tread | Front/rear | mm | 910/900 | 34 | Ground clearence | At lowest point(mast) | mm | 105 | Frame | mm | 95 | 35 | Brake | Service brake | | Hydraulic-foot peda | Parking brake | | Mechanical lever | Electric motor and controller | 36 | Battery | Voltage/capacity | V/AH/5hr | 48V-400 | 37 | Weight (standard) | kg | 735 | 38 | Electric motor | Driving motor | kw/60min | 8 | 39 | Hydraulic driving motor | kw/5min | 8.2 | 40 | Control type | Electric driving | 1 | 41 | Operating pressure | Hydraulic system pressure | kg/cm | 145 | NOTE: 1 - Drving AC choppedwave control mode /lifting AC voltage control mode | - - - - After-sale service Nowadays more than 100 agents around the world can supply LTMA professional after-sale service.

All the products of LTMA supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please see to our website and products quality certificate.
