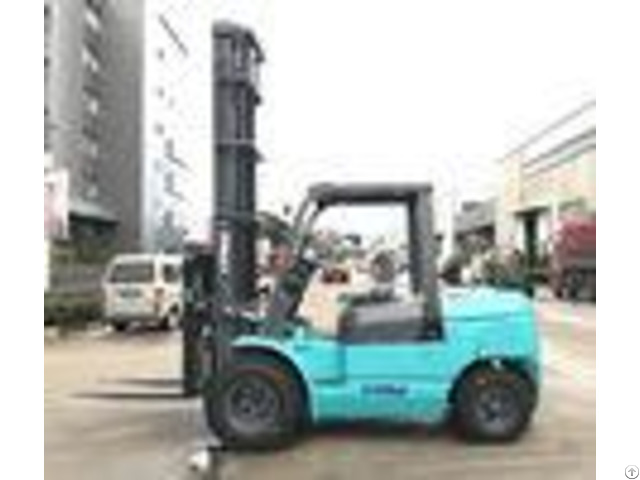

Psi 4 3 Epa Engine Gasoline Forklift Truck For Port 3000mm Lift Height - China

5 ton LPG & gasoline forklift with engine PSI 4.3 EPA 1) Equipped with Chinese powerful and reliable engines with excellent environmental performance; Original imported Nissan and PSI engines are optional.

Using American IMPCO gas system which is more reliable.

2) Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.

3) An all aluminum radiator core provides constant engine coolant temperature control through faster heat dissipation.

Combination engine coolant and transmission fluid radiator is designed for maximum air flow passing through the counterweight.

4) Latest technology LPG engines have EPA tier 3 and EU stage IIIA rated engines certified to meet/exceed CARB emissions - - - - General | 1 | Model | | FG50T | 2 | Power type | | LPG | 3 | Rated Capacity | kg | 5000 | 4 | Load centre | mm | 600 | Characteristic&Dimens ion | 5 | Lift Height | mm | 3000 | 6 | Fork Size | LWT | mm | 122015060 | 7 | Mast title Angle | F/R | Deg | 6/12 | 8 | Front Overhang (Wheel center to fork face) | mm | 590 | 9 | Ground clearance (Bottom of mast) | mm | 200 | 10 | Overall Dimension | Length to face of fork (without fork) | mm | 3450 | 11 | Overall width | mm | 2010 | 12 | Mast Lowered Height | mm | 2550 | 13 | Mast Extended Height (with backrest) | mm | 4380 | 14 | Overhead Guard Height | mm | 2470 | 15 | Turning Radius (outside) | mm | 3250 | 16 | Min.

intersecting aisle | mm | 2960 | Performance | 17 | Speed | Travel(no load) | km/h | 30 | 18 | Lifting(full load) | mm/s | 500 | 19 | Max Gradeability | % | 20 | Chassis | 20 | Tire | Front | | 8.25-15-14 PR | 21 | Rear | | 8.25-15-14 PR | 22 | Wheelbase | mm | 2250 | 23 | Service Weight | kg | 8550 | Power&Transmission | 24 | Battery | Voltage/Capacity | V/Ah | (12V/80AH) 2 | 25 | Engine | Model | | GM4.3L | 26 | Manufacture | | GM | 27 | Rated output/r.p.m.

| kwt/r.p.m | 56/2200 | 28 | Rated torque/r.p.m.

| Nmt/r.p.m | 240/750 | 29 | No.

of Cylinder | | 6 | 30 | BoreStroke | mm | 101.688.39 | 31 | Displacement | cc | 4300 | 32 | Fuel Tank Capacity | L | 140 | 33 | Transmission | Type | | Hydraulic | 34 | Stage | FWD/RVS | | 2/2 | 35 | Operating pressure for attachment | Mpa | 19 | - - - - After-services : LTMA is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-services.

All the products purchased from LTMA enjoy one year or 2000 hours (which occurs first) warranty.

During the warranty period, if there is any part broken because of quality problem (except easy-damaged parts), the defective parts will be repaired or replaced free of charges.
