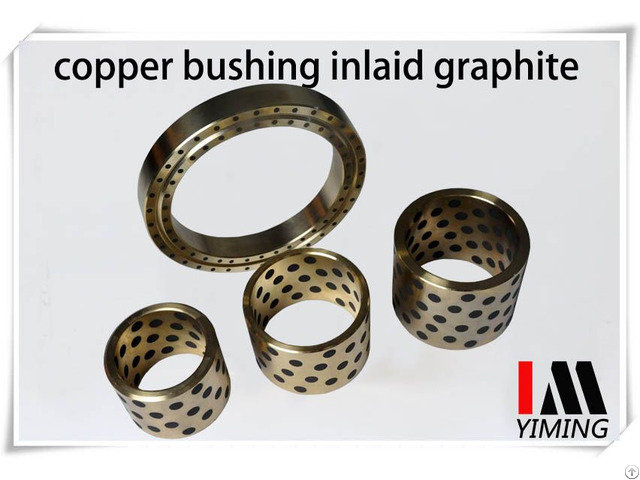

Self Lubricating Bearings Copper Bushing Inlaid With Graphite Oilless Parts - China

Packing and delivery details:

single products in carton, totally in wooden box with water-proof plastic and on pallet.

Samples deliveried by air and batch orders deliveried by sea.

Specifications:

The self-lubricating construction is copper alloy based inlaide with graphite lubricants, according to different based copper material, the bearings have different performance as followings:

Material code(based) Loading ability (MPa) Limit PV value Spare parts (shaft) hardness Application range

Dynamic load Static load Running speed

0.4 0.1 0.05 0.01

ZCuSn10Pb1 125 55(110) 1.25(8.4) 1.1(5.4) 1.1(3.5) 0.55(1.05) 220 Higher speed, lower load, impact resistance

ZCuAl10Fe3 180 70(140) 1.2(8.4) 1(5.4) 1(4) 0.7(1.5) 220 High load, corrosive environment

ZCuZn25Al6Fe3Mn3 350 80(160) 1.18(8.4) 0.97(5.4) 0.9(4) 0.7(1.6) 300 High load, corrosive not serious environment

ZCuAl9Fe4Ni4Mn2 180 70(140) 1.2(8.4) 1.03(5.4) 0.96(4) 0.75(1.4) 300 High load, high temp., corrosive environment

Values in parentheses are parameters for intermittent motion.

Standard JDB solid lubricant embedded bushing is made from strong brass(ZCuZn25Al6Fe3Mn3) and homogeneously embedded with solid lubricant in it’s body.

It breaks through the limit of general bearing whose lubrication depends on oil film.

So it is suitable for high temperature, heavy duty, anti-corrosion.

Or where oil is hard to be introduced.

It performance doubles both on hardness and wear-friction.

Dimensions according to customer required：for bushings, 8mm minimum inside diameter and 1500mm maximum outside diameter.

For plates, 2000mm length maximum and 600mm width maximum and thickness 100mm maximum.

Possible versions: Bushings, flange bushing, gasket, slider, special products.

Delivery time: quickly delivery time, 10-15days standard prducts and 20-30days specificed.

Application:

The products has been used in construction machinery, africulture machinery, metallurgy, steel industry, air industry, ship industry, mining machine, petroleum machine, forging machine, generating equipment, railway, heavy machinery and etc.

Products range:

The major products: copper alloy bushings, cooper alloy plate, Inlaid graphite copper bushings, Steel and copper bimetal bushings, bimetal self-lubricating bearings, copper and steel composite material plate, Steel based copper plastic materials, DU oil-free bushings, DX Boundary lubrication material bushings, self-lubricating joint bearings, bearing steel sleeve bushings, mechanical parts etc.

Our sales people give highest consideration to any enquiry, and are happy to receive comments or questions for special application or OEM products.

We possess a complete production and service system including everything from casting, metal machining, packing and delivery to quality inspection and specialized marketing is avaiable.

We sincerely hope to enter into business relations with you, and offering you products with high quality.
