Thb Large Size Tapered Roller Bearings 32960 - China
price: 20.00 Dollar US$
Product information:

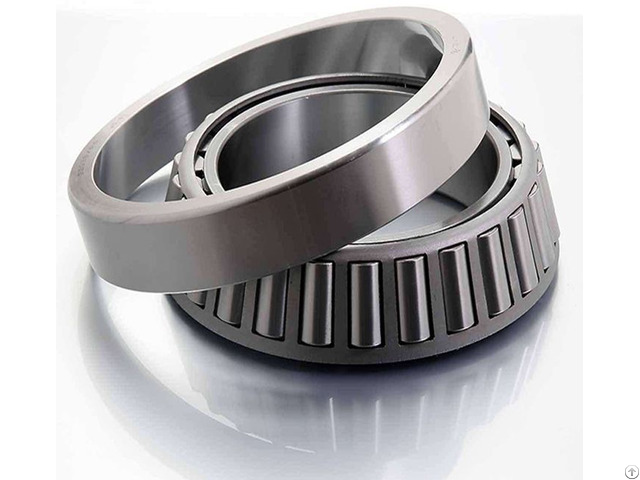

Tapered roller bearings, single row 32960
Bearing number : 32960
Size (mm) : 300x420x76
Brand : RORKS
Bore Diameter (mm) : 300
Outer Diameter (mm) : 420
Width (mm) : 76 Bearing dimensions and specification:
d - 300 mm
D - 420 mm
T - 76 mm
d1 - - 359 mm
B - 76 mm
C - 57 mm
r1, 2 - min.
- 4 mm
r3, 4 - min.
- 3 mm
a - 79 mm
da - max.
- 324 mm
db - min.
- 314 mm
Da - min.
- 383 mm
Da - max.
- 406 mm
Db - min.
- 405 mm
Ca - min.
- 12 mm
Cb - min.
- 19 mm
ra - max.
- 4 mm
rb - max.
- 3 mm
Basic dynamic load rating - C - 1050 kN
Basic static load rating - C0 - 2240 kN
Fatigue load limit - Pu - 190 kN
Reference speed - 950 r/min
Limiting speed - 1400 r/min
Mass bearing - 31.638 kg
Tags : 300x420x76
Company Contact:
- Posted By: THB Bearings.,co ltd
- Phone: 8613411184395
- Address: No. 589,Quwu Road, city , minghang , China
- Email:
- Website: https://www.thb-bearings.com
Published date: July 21, 2020
- Business Description: Cylindrical Roller Bearings, Spherical Roller Bearings, Tapered Roller Bearings, Deep Groove Ball Bearings, Cross Roller Bearings, Special & Obsolete Bearings and Slewing Rings are our specialty.
