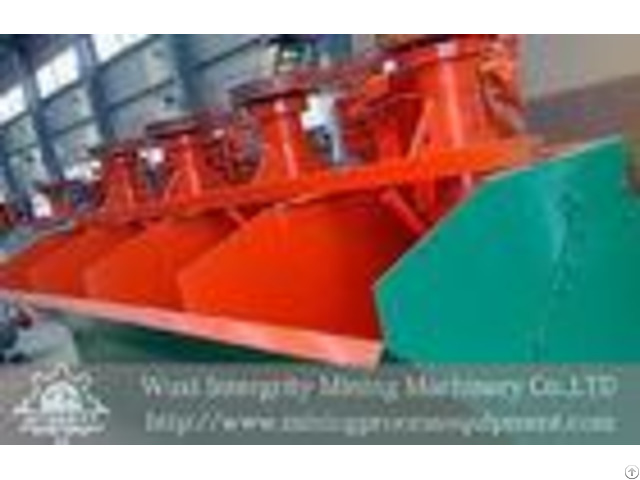

Antimony Ore Mining Flotation Cell Concentration Machine Low Power - China

Antimony Ore Mining Flotation Cell Concentration Machine Low Power ' Application: white tungsten ore, Copper ore, Chrome ore, Zinc Ore, Lead ore, Nickel ore, Gold ore, Phosphate ore, Manganese ore, Silver ore, Molybdenum ore, Graphite ore, Quartz ore, Iron ore, Fluorite ore, Feldspar ore, ferrous metals and Non-ferrous metals.

Description of Antimony ore concentrate machine 1, This machine is a mechanical flotation machine impeller.

2, The flotation machine is mainly composed of a slurry tank, a stirring device, charging device, discharge device, motor and other components of mineralized bubbles.

Features of Tungsten Antimony Ore Flotation Machine: Closed flotation circuit without any auxiliary equipment; Large inspiratory capacity, low power consumption; Reasonable slurry circulation can keep the coarse precipitate to be minimum; Easy to adjust with automatic control and electronic control device.

Antimony ore flotation machine working principle The impeller is rotated by V-belt of motor and produces negative pressure by centrifugal function.

Enough air is sucked to mix slurry, and slurry mixes drug at the same time.

Mineral sticks on bubble completely and floats on the surface of slurry to form mineralized bubble.

Useful bubble is scraped out by adjusting flashboard height and controlling liquid surface.

Specifications of XCFFlotation Machine - - - - - - - -

Model | Effective capacity (m3) | Capacity (m/min ) | Diameter of impeller (mm) | Impeller Rotation (r/min) | Blower Pressure (kPa) | Max.

inflating volume (m/m.

min) | Motor Power kw | Single Tank Weight (kg) | Remarks | Agitation | Scraper | XCF-1 | 1 | 0.21 | 400 | 358 | 12.6 | 2 | 5.5 | 1.1 | 1154 | Need to be inflatable, self-absorp ore pulp and proceed levels set, no need foam pump | XCF-2 | 2 | 0.22 | 470 | 305 | 14.7 | 2 | 7.5 | 1.1 | 1659 | XCF- 3 | 3 | 0.63 | 540 | 206 | 19.8 | 2 | 11 | 1.5 | 2259 | XCF-4 | 4 | 1.24 | 620 | 225 | 19.8 | 2 | 15 | 1.5 | 2669 | XCF-8 | 8 | 38 | 720 | 185 | 21.6 | 2 | 22 | 1.5 | 3968 | XCF-16 | 16 | 416 | 860 | 160 | 25.5 | 2 | 37 | 1.5 | 6520 | - - - - | - - - -
