Flotation Cell Beneficiation Plant Wear Resistance For Molybdenum Processing - China

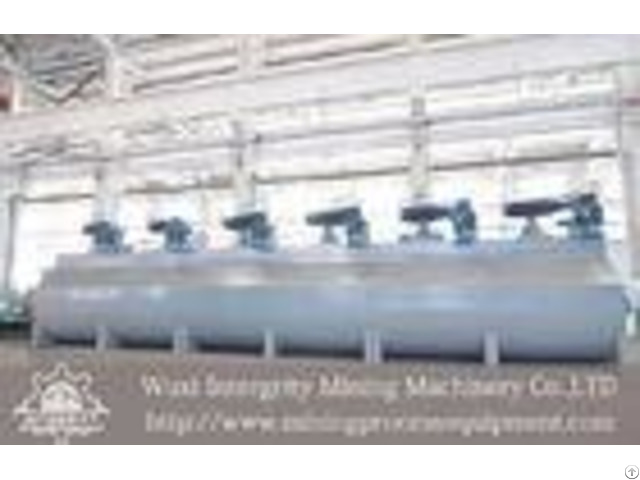

Flotation Cell Beneficiation Plant Wear Resistance For Molybdenum Processing Application of Flotation machine, Flotation Metal Separator : The mineral froth Flotation machine is widely used for roughing, concentrating and counter-flotation of nonferrous metal that includes copper, lead, zinc, nickel and molybdenum, ferrous metal and nonmetallic mineral.

Our Flotation Machine's Advantages: 1 - With a light structure, it's easy to install the bearing body with a good perpendicularity.

2 - Wear resistance, long service life and powerful agitating force.

3 - U-shaped tank reduces the ore accumulated at the bottom of the tank.

4 - With light main shaft parts and the stator installed at the bottom of the tank, it's easy to install them.

How flotation machine works? When gold, lead ore, copper ore flotation machine works, slurry is inhaled from the bottom of the trough to the space between impellers.

Meanwhile, the low pressure air send by fan is sent to this area through the air distributor in the hollow shaft.

After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough.

When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir.

Another part of ore slurry flows to lower part of impeller for the re_mis with air.

The remained slurry flows to the next trough until becomes residue.

Specifications of Flotation Machine - - - - - - - -

Model | Effective capacity (m3) | Capacity (m/min ) | Diameter of impeller (mm) | Impeller Rotation (r/min) | Blower Pressure (kPa) | Max.

inflating volume (m/m.

min) | Motor Power kw | Single Tank Weight (kg) | Remarks | Agitation | Scraper | XCF-1 | 1 | 0.21 | 400 | 358 | 12.6 | 2 | 5.5 | 1.1 | 1154 | Need to be inflatable, self-absorp ore pulp and proceed levels set, no need foam pump | XCF-2 | 2 | 0.22 | 470 | 305 | 14.7 | 2 | 7.5 | 1.1 | 1659 | XCF- 3 | 3 | 0.63 | 540 | 206 | 19.8 | 2 | 11 | 1.5 | 2259 | XCF-4 | 4 | 1.24 | 620 | 225 | 19.8 | 2 | 15 | 1.5 | 2669 | XCF-8 | 8 | 38 | 720 | 185 | 21.6 | 2 | 22 | 1.5 | 3968 | XCF-16 | 16 | 416 | 860 | 160 | 25.5 | 2 | 37 | 1.5 | 6520 | - - - - | - - - -
