Metal And Nonmetal Ore Cone Crusher Mineral Processing Equipment - China

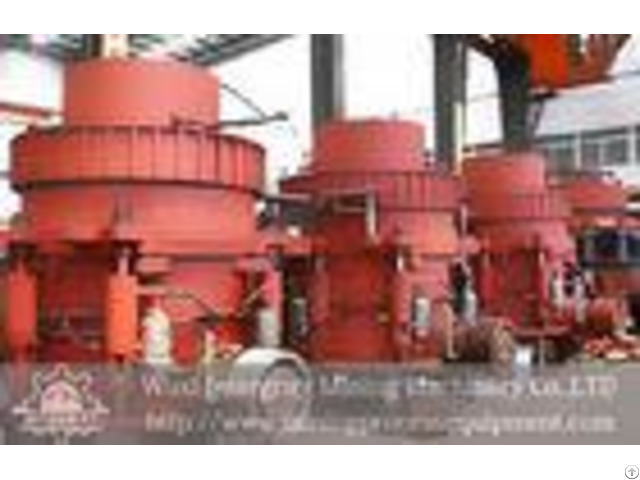

Metal and Nonmetal Ore Cone Crusher Mineral Processing Equipment Crusher Equipment Cone crusher for Metal and Nonmetal ore processing Cone crusher is widely used in mining, metallurgy, construction, road building industry, chemical and silicate industry, suitable for crushing hard and medium hard ore and rock, such as iron ore, limestone, copper ore, quartz, granite, basalt and sandstone, etc.

Cone Crusher Type and used in metal and nonmetal mines, cement, construction, gravel metallurgy Application Cone Crusher.

The cone crusher is suitable for crushing all kinds of ores and rocks above medium hardness.

it has the features of reliable structure, high productivity, easy adjustment and economical operation, ect.

the spring system acts as an overload protection system that allows iron to pass through the crushing chamber without damaging the crusher .

it uses consistent grease or water for sealing, which separates crushed particles from lubricating oil, and insures reliable work.

the types of crushing chamber depend upon the usage of the final products.

the standard type is applied to medium type is applied to medium crushing;the medium types are fit for medium and fine crushing and fine crushing and fine crushing and the short head type is fit for fine crushing.

Characteristics and Advantage of jaw crusher specifications 1 - High reduction ratio and even final particles 2 - Simple structure and easy to be maintained 3 - Easy replacement of wearing and spare parts 4 - Reliable operation and long service life 5 - Convenient maintenance and low maintainance charges 6 - Wide ranges of products Cone crusher for basalt Working Principle: When working the rotation of the motor through pulley or coupling, drive shaft and the conical portion of the eccentric force moving around the circle next to a fixed point for rotating pendulum movement, so that the cone crusher crushing wall sometimes near and sometimes off the solid adjustment sleeve mounted on rolling acetabular wall surface, the ore in the crushing cavity constantly under attack, pressing and bending and crushing ore.

Bevel gear drive motor through eccentric rotation, so crushing cone make swing movement.

crushing cone sometimes close and sometimes away from the fixed cone, to complete the crushing and nesting.

Support sleeve and frame body connection is pressed by spring, when the piece of metal and other objects which can not be broken fall within the crusher, compressive deformation of the spring discharge foreign objects, to achieve safety and prevent damage to the machine.

Specifications - - - - Model | Chamber | Max.

Feed Size (mm) | Min discharge opening (mm) | Power (kw) | Correlation table for the discharge opening and capacity (t/h) Close discharge size | Weight (kg) | 6mm | 10mm | 13mm | 16mm | 19mm | 22mm | 25mm | 38mm | DMC1000 | Coarse | 160 | 13 | 90-110 | | | 80 | 100 | 135 | 150 | 175 | 235 | 10800 | Medium | 115 | 10 | 90-110 | | 65 | 75 | 90 | 120 | 135 | 150 | | Fine | 80 | 8 | 90-110 | 52 | 62 | 72 | 78 | 115 | | | | Extra Fine | 50 | 3 | 90-110 | 50 | 55 | 65 | 70 | 102 | | | | DMC1160 | Coarse | 180 | 13 | 110-132 | | | 115 | 135 | 150 | 180 | 200 | 260 | 15500 | Medium | 130 | 10 | 110-132 | | 100 | 110 | 120 | 135 | 165 | 175 | | Fine | 90 | 10 | 110-132 | | 80 | 105 | 110 | 140 | | | | Extra Fine | 60 | 6 | 110-132 | | 60 | 74 | 105 | 110 | 130 | | | DMC1300 | Coarse | 200 | 16 | 132-160 | | | | 150 | 180 | 200 | 230 | 310 | 22300 | Medium | 150 | 13 | | | 115 | 140 | 160 | 190 | 210 | | Fine | 102 | 10 | | 90 | 115 | 145 | 160 | | | | Extra Fine | 70 | 8 | | 88 | 110 | 135 | 155 | | | | DMC1380 | Coarse | 215 | 19 | 185-220 | | | | | 200 | 220 | 260 | 350 | 26300 | Medium | 160 | 16 | | | | 155 | 180 | 200 | 220 | | Fine | 115 | 13 | | | 150 | 190 | 210 | 230 | | | Extra Fine | 76 | 8 | | 122 | 148 | 185 | 200 | | | - - - -
