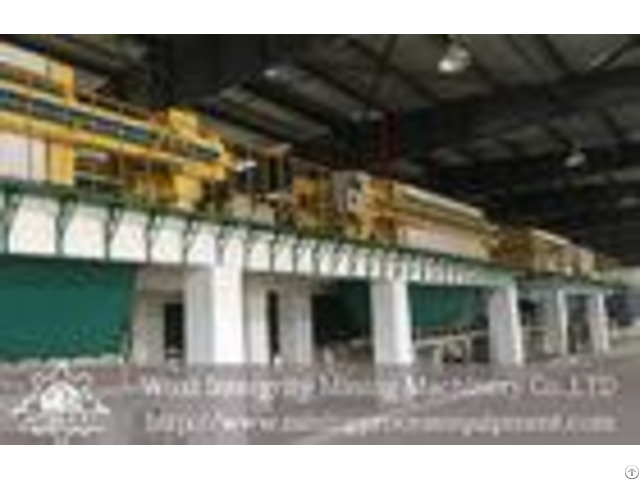

Mining Dewatering Recessed Plate Filter Press Automatic Chamber - China

Mining Dewatering Recessed Plate Filter Press Automatic Chamber The diaphragm filter press adopts the most advanced filter process.

The unit is used to reduce moisture in materials and increase solid rate by 8% - 35% Wash liquid impurities in press cake to improve purity of the solid ingredients in filter residue Wash the solution in press cake to improve filtrate recovery Air pressing or water pressing can be selected for diaphragm filter plates, with a pressure range of 0.5 to 1.6MPa The frame adopts hydraulic pressing, automatic control, automatic pressure maintaining and programmable functions; all actions are realizable by controlling buttons on electric control cabinet Safety devices are provided to ensure safe operation.

Application: Solid-liquid separation in coal washing, inorganic salt, alcohol, chemical, metallurgy, pharmaceutical, light industry, coal mining, foodstuff, textile, environmental protection, energy source and other industries Chamber Filter Press Programmed Auto High Pressure PP Membrane, waste water treatment system/equipment.

Performance characteristics The structure is simple, the failure rate is little, the operation is simple, safe, and the maintenance is convenient.

High temperature, high pressure, good corrosion resistance.

Good sealing performance, less material loss when feeding, not easy material, and each filter chamber of uniform pressure is not easy to bad board.

The filtration rate is fast, the filter cake is washed evenly, the moisture content is low, and is suitable for all the solid liquid separation industry.

The hydraulic device is used for pressing and loosening the power mechanism of the filter plate, the maximum compression pressure is 25MPa, and the automatic pressure protection can be realized.

The filtration pressure is 0.5-1.0MPa, to ensure the best condition of forming the filter cake, and carry on the pressure filtration.

Filtration area: 1.0-1180 m2 Low and high pressure: 100 psi (7bar), 225 psi (16bar), higher pressure

Slurry temperature: from -10 to + 100C

Membrane squeezing system: air, water

Standard plate packs: Chamber plate, membrane plate, CGR plate, Plate and frame

Filter plate material: Polypropylene

Closure system: Automatic closure (Electric Hydraulic)

Control systems: Standard control panel, PLC control

Filtration discharge: Open, Close Filter cake washing/Blowing type

Plate shifting: Manual shifting plate, Automatic shifting plate

Wetted material: Mild steel, SS304, SS316L, PP, Mild steel with TPFE Custom paint system OPTIONS: Expansion options available for future capacity Two side feeding Drip tray device Filter cloth washing device Filter cloth tilting device Filter cloth shaking device Filter cake hopper Filter cake conveyor Cake Carts Chute Elevated Platforms Safety: Splash Curtain, Safety Guard, Safety Light Curtains Text displayer or HMI DCS Explosion-proof occasions working principle In the feed pump pressure will require filtering material sent to the filter chamber, through the filtering medium (choose suitable cloth according to different industries), the solid and liquid separation.

Solid particles form a residue in the filter cloth, filter cake is formed to fill the filter chamber.

The filtrate through filter cloth and the filter plate groove flow down to the passage of the liquid, concentrated discharge.

Filter is completed, can be washed into the washing liquid filter.

After washing, sometimes can also choose to pass into the compressed air, remove residual washing liquid.

After filtering open removable filter cake of filter press (filter cake store in the middle of the two adjacent filter plates), cleaning cloth, re compression filter plate began under a working cycle.

- - - -

Model | Filter area () | Volume of filter chamber | Thickness of plate /frame (mm) | Pressure in filter chamber (Mpa) | Work temperature | Nos of filter plate/frame | Motor power | Dimensions (mm) | GW (kg) | XY6/630 | 6 | 75 | 50/25 | <0.6 | <80 | 8 | 1.5 | 1836x850x1150 | 693 | XY8/630 | 8 | 100 | 50/25 | <0.6 | <80 | 12 | 1.5 | 2040x850x1150 | 760 | XY10/630 | 10 | 125 | 50/25 | <0.6 | <80 | 15 | 1.5 | 2193x850x1150 | 810 | XY12/630 | 12 | 150 | 50/25 | <0.6 | <80 | 18 | 1.5 | 2346x850x1150 | 860 | XY14/630 | 14 | 175 | 50/25 | <0.6 | <80 | 22 | 1.5 | 2550x850x1150 | 924 | XY16/630 | 16 | 200 | 50/25 | <0.6 | <80 | 25 | 1.5 | 2703x850x1150 | 970 | XY18/630 | 18 | 225 | 50/25 | <0.6 | <80 | 28 | 1.5 | 2856x850x1150 | 1020 | XY20/630 | 20 | 250 | 50/25 | <0.6 | <80 | 31 | 1.5 | 3009x850x1150 | 1070 | XY25/630 | 25 | 313 | 50/25 | <0.6 | <80 | 39 | 1.5 | 3417x850x1150 | 1205 | XY28/630 | 28 | 350 | 50/25 | <0.6 | <80 | 44 | 1.5 | 3672x850x1150 | 1290 | XY30/630 | 30 | 375 | 50/25 | <0.6 | <80 | 48 | 1.5 | 3876x850x1150 | 1260 | - - - -
