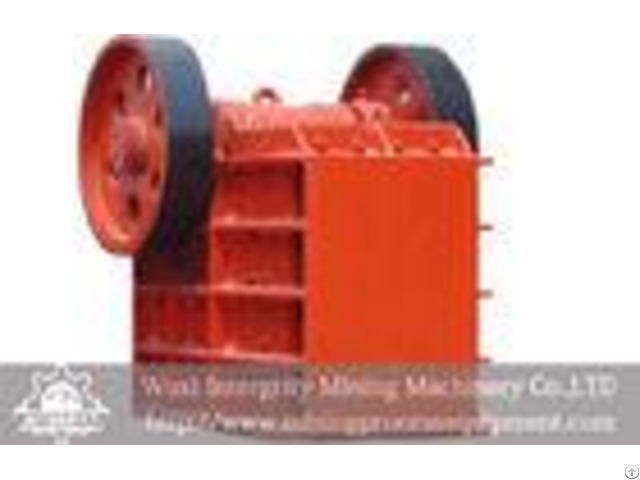

Ore Jaw Mining Crusher Equipment Mobile For Nonmetalliferous - China

Ore Jaw Mining Crusher Equipment Mobile For Nonmetalliferous Applications Jaw crushers are most commonly used as primary crushers, to make the first step of size reduction.

In some cases the jaw crushers is used to produce final end product but in most cases the jaw crusher is used to prepare the feed for the secondary crusher in a crushing and screening process.

Jaw crushers working principle: The structure of jaw crushers for quarry production line: main frame, eccentric shaft, a large belt pulley, fly wheel, swing jaw, side guard plate, toggle plate, Rear bracket, adjust gap screw, reset spring, and fixed jaw and swing jaw board etc., and the toggle plate also plays a role of protection.

The motor transmits power through belt and belt pulley, drives the swing jaw surround the eccentric shaft do periodic motion.

The angle between toggle plate and swing jaw increases when swing jaw moves up., which makes the moving jaw get closes to the fixed jaw.

At the same time the material is squeezed, rubbing, grinding and other multiple broken.

The angle of Jaw Crusher between toggle plate and swing jaw decreases when swing jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.

Jaw CrusherProduct Advantages Advanced swing jaw assembly, more durable.

Large reduction ratio, optimum design of chamber and high crushing efficiency.

New cambered jaw increases the effective length of the jaw plate and brings lager capacity.

Main technical parameters of Jaw Crusher - - - -

Model | Feed Opening (mm) | Max.

feeding (mm) | Discharge opening (mm) | capacity (t/h) | Rotation speed (r/min) | power (kw) | Weight (t) | Dimensions (LWH) (mm) | PE-150250 | 150250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720660850 | PE-200300 | 200300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910750990 | PE-200350 | 200350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000870990 | PE-250400 | 250400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 130010901270 | PE-400600 | 400600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 173017301630 | PE-500750 | 500750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 198020801870 | PE-600750 | 600750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 207020001920 | PE-600900 | 600900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 219022062300 | PE-7501060 | 7501060 | 630 | 80-140 | 110-320 | 250 | 110 | 29 | 266024302800 | PE-8001060 | 8001060 | 640 | 130-190 | 130-330 | 250 | 110 | 29.8 | 271024302800 | PE-8301060 | 8301060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 274024302800 | PE-8701060 | 8701060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 281024302800 | PE-9001060 | 9001060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 287024202940 | PE-9001200 | 9001200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 338028703330 | PE-10001200 | 10001200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 348028763330 | PE-12001500 | 12001500 | 1020 | 150-350 | 400-800 | 180 | 160-220 | 100.9 | 420033003500 | PE-15001800 | 15001800 | 1200 | 220-350 | 500-1000 | 180 | 280-355 | 122 | 516036604248 | - - - -
