Sb265 Gr 2 Titanium Clad Plate For Flue Gas Desulfurization Fgd - China

SB265 Gr.

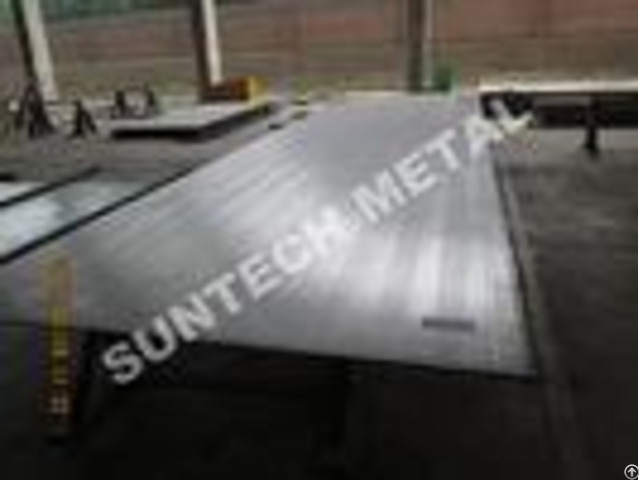

2 Titanium Clad Plate for Flue Gas Desulfurization FGD Detailed Product Description: Explosion Bonded / Bimetallic / Cladded Plate / FGD Application Flying layer: SB265 Gr.

2 Base layer: SA516 Gr.

70 Size: (1.2mm+8mm)*2000*8000mm Packing: plywood packing Application: Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.

Table for available type of Titanium clad plates: - - - - Product Names: | Titanium Clad Plate/Sheet, Titanium Clad Tube Sheet/ Tube Plate | Production Codes: | ASTM B898, ASME SB898, ASTM B264, ASME SB264, ASTM B265, ASME SB265, ASTM B432, ASME SB432, DIN, BS, JIS, GB/T, ISO, etc.

| Titanium Grades: | ASTM/ASME B265 Gr1, Gr2, Gr.

3, Gr.

5, Gr7, Gr.

9, Gr12 | Form | Description | Base Layer | Base Layer Grade | Maximum Size | Clad Plate | Titanium / Carbon Steel Clad | Carbon steel plate and forging | SA516 Gr.

60(N), Gr.

70(N), SA387 Gr.

11, Gr.

22, SA266, SA350, etc.

| (1.5~14)/(2~200) x W(max W 4110) x L(max L 7000) | Titanium / Stainless Steel (Duplex) Clad | Duplex, Stainless Steel & their forgings | 304L, 316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo, etc.

| (1.5~14)/(2~200) x W(max W 4110) x L(max L 7000) | Titanium / Copper (Naval Brass) Clad | Copper, Naval Brass | C10100, C10200, C11000, C26200, C28000, C46400, C70600, C71500, etc.

| (1.5~14)/(2~100) x W(max W 2100) x L(max L 6000) | Titanium / Aluminum Clad | Aluminum | A1050, A1060, A1070, A1100, A5052, etc.

| (1.5~14)/(6~50) x W(max W 1500) x L (max L 4000) | Titanium / Nickel Clad | Nickel and its alloy | N02200, Monel 400, Inconel 600, Incoloy 800, 825, C276, C22, etc | (1.5~14)/(6~50) x W(max W 2000) x L (max L 5000) | Titanium / Carbon Steel / Titanium Clad | Carbon steel plate and forging | SA516 Gr.

60(N), Gr.

70(N), SA387 Gr.

11, Gr.

22, SA266, SA350, etc.

| (1.5~14)/(6~200)/(1~10) x W(max W 3000) x L(max L 6000) | Titanium / Copper / Titanium Clad | Copper, Naval Brass | C10100, C10200, C11000, C26200, C28000, C46400, C70600, C71500, etc.

| (1.5~14)/(2~100) x W(max W 2100) x L(max L 6000) | Titanium / Carbon Steel / Stainless Steel Clad | Carbon steel plate and forging | SA516 Gr.

60(N), Gr.

70(N), SA387 Gr.

11, Gr.

22, SA266, SA350, etc.

| (1.5~14)/(6~200)/(1.5~10) x W(max W 4110) x L(max L 7000) | Duplex, Stainless Steel & their forgings | 304L, 316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo, etc.

| Zirconium / Titanium / Carbon Steel Clad | Zirconium | R60702 | (1.5~14)/(1.5~2)/(2~200) x W(max W 4110) x L(max L 7000) | Carbon steel plate and forging | SA516 Gr.

60(N), Gr.

70(N), SA387 Gr.

11, Gr.

22, SA266, SA350, etc.

| Aluminum / Titanium / Carbon Steel Clad | Aluminum | A1050, A1060, A1070, A1100, A5052, etc.

| (1.5~40)/(1-5)/(8~200) x W(max W 1000) x L(max L 1000) | Carbon steel plate and forging | SA516 Gr.

60(N), Gr.

70(N), SA387 Gr.

11, Gr.

22, SA266, SA350, etc.

| Aluminum / Titanium / Copper Clad | Aluminum | A1050, A1060, A1070, A1100, A5052, etc.

| (1.5~40)/(1-5)/(1~100) x W(max W 1000) x L(max L 1000) | Copper, Naval Brass | C10100, C10200, C11000, C26200, C28000, C46400, C70600, C71500, etc.

| | - - - - Competitive Advantage: # # Abundant experience: more than one decade of abundant experience in non-ferrous metal cladding and production; # Technical consulting service: technical consulting on material, welding, NDE, etc; # Independent inspection service: in-process inspection, final inspection; # Transportation advantage: 296kms away from Shanghai seaport.
