Automatic Coil Sheet Decoiler Straightener Feeder For Electric Hydraulic Hole Puncher - China

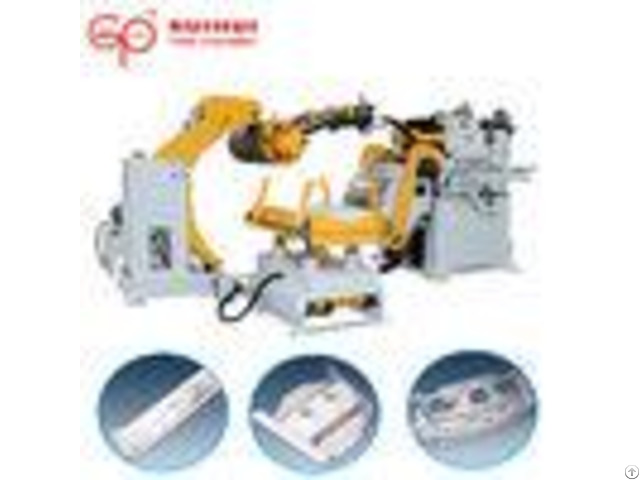

Automatic Coil Sheet Decoiler Straightener Feeder for Electric Hydraulic Hole Puncher 1 - Introduction of decoiler straightener feeder A automation equipment in high speed feeding coil for punch press.

The machine is feeding levelling with uncoiling steel coil.

The 3 in 1 whole line is controlled by PLC with computer display.

We mainly apply computer-control system of brands Mitsubishi.

This line can help to improve efficiency, lower cost and ensure quality.

TNCF series has won wide market with its high performance and low price.

The thickness of material can be from 0.2MM to 8MM, width from 150MM to 1600MM, highest precision 0.15MM and speed 16M/min.

This machine is applicable for processing of copper coil, aluminum coil, cold-rolled coil, hot rolled material, silicon steel, and stainless steel and so on.

1 - Easy Access to Work Rolls: The work rolls on the HL can be opened to a maximum of 20 degrees, making roll cleaning much easier, The machine was designed to allow easy access to the inside structure for improved maintenance.

2 - Coil Material Entry Support Assembly: Save Man Power Increase Safety, Easily move the material into pinch rollers.

Specifications: - - - - Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | Stock Width(mm) | 70~600 | 70~800 | 70~1000 | 70~1300 | Stock Thickness(mm) | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | Max.

Coil Weight(kg) | 5000 | 5000 | 7000 | 10000 | Max.

Coil O.D.(mm) | 1400 | 1400 | 1400 | 1400 | Coil I.D.(mm) | 508 | 508 | 508 | 508 | Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | Max.

Line Speed(m/min) | 16~24 | 16~24 | 16~24 | 16~24 | Work Roll Number(piece) | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 | Feed Roll number(set) | 1 | 1 | 1 | 1 | Main Motor | AC7.5 | AC11.0 | AC11.0 | AC11.0 | Mandrel Expansion | Hydrauilc | Hydrauilc | Hydrauilc | Hydrauilc | Reel Motor(kw) | 2.2 | 2.2 | 3.7 | 7.5 | Power(v) | 3 Phase 220V/380V/50HZ | Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 | - - - - Straightening Performance: - - - - Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | Stock Thickness (mm) | 0.8~2.3 | 600 | 800 | 1000 | 1300 | 2.8 | 933 | 933 | 3.2 | 714 | 714 | 714 | 4.0 | 457 | 457 | 457 | 457 | 4.5 | 361 | 361 | 361 | 361 | 5.0 | 293 | 293 | 293 | 293 | 6.0 | 203 | 203 | 203 | 203 | - - - - Products:
